Description

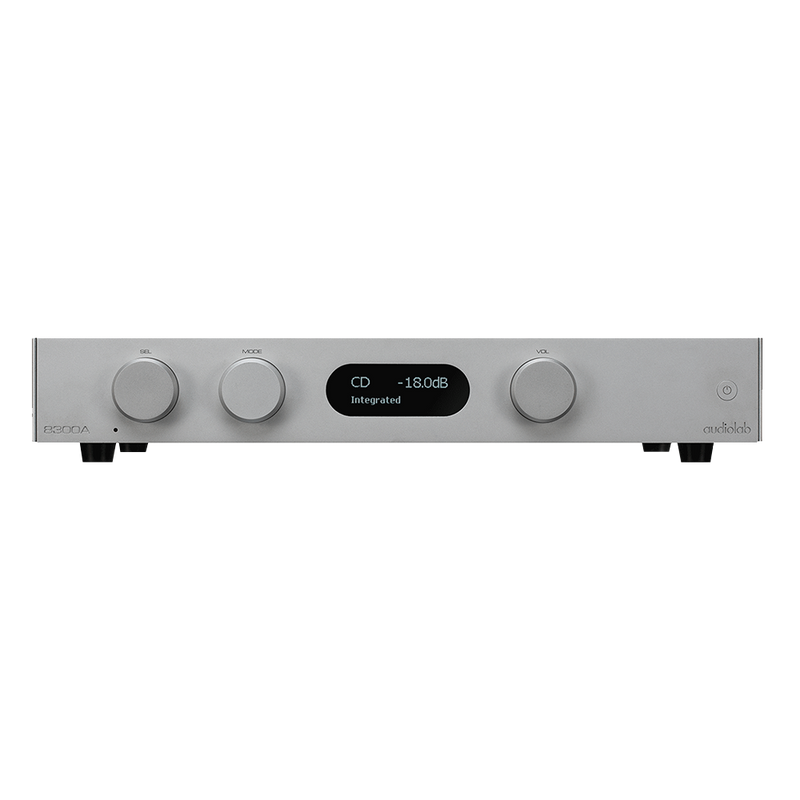

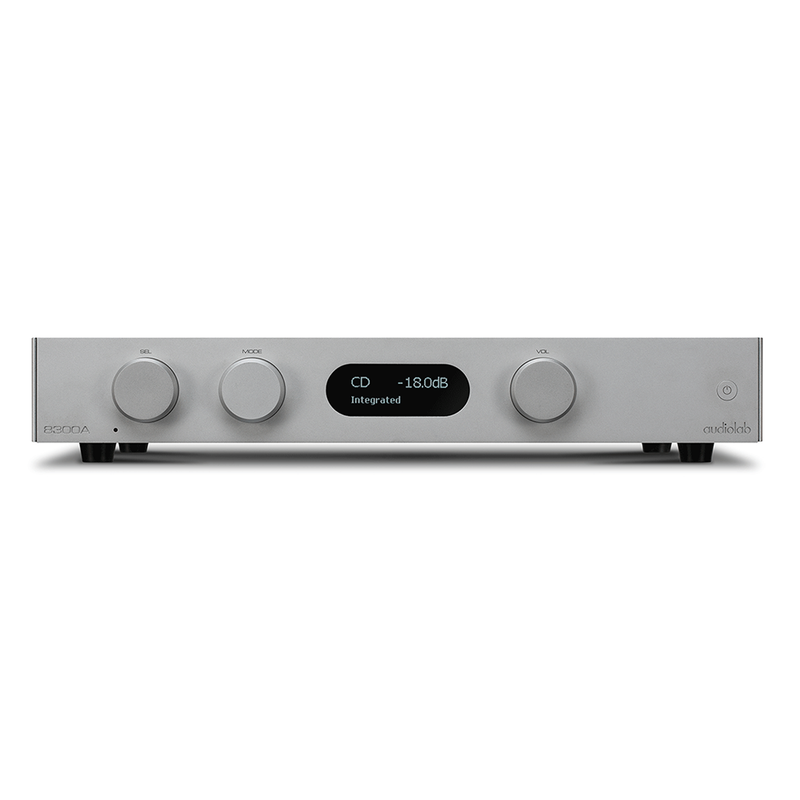

Completely redesigned from scratch, our new integrated amplifier, the 8300A is miles ahead of what was already an industry-leader. Higher power, an additional phono stage and new audiolab styling means the amplifier is more stylish and more versatile than ever. Most importantly it’s new, ultra-efficient circuitry and streamlined components create a listening experience which brings new definition to your favourite music.
Specifications and Features:
-
Preamplifier Section
- Input sensitivity (Phono RIAA): 50K // 100pF
- Input impedance (line inputs): 50K // 100pF
- Input impedance (phono inputs): 47K // 100pF (MM), 100R // 1.5nF (MC)
- Output voltage: 2.3V max. (< 0.02% THD)
- Output impedance: 120Ω
- Frequency response (Line): +/- 0.1dB (10Hz - 20kHz); +/- 3.0dB (1Hz - 100kHz)
- Frequency response (Phono RIAA): +/- 1.0dB (20Hz - 20kHz)
- Channel Imbalance: < 0.2dB (10Hz - 20kHz)
- Total harmonic distortion (THD) Line: <0.001%
- Total harmonic distortion (THD) Phono: <0.002%
- Signal-to-noise ratio (Line): > 107dB; >109dB(A-weighted)
- Signal-to-noise ratio Phono (MM): > 73dB; > 78dB(A-weighted)
- Signal-to-noise ratio Phono (MC): > 68dB; > 73dB(A-weighted)
- Crosstalk: < 80dB (L-> R & R->L @10kHz)
- Gain: 29dB (20Hz-20kHz)
- Input Sensitivity: 840mV (Power Out = 70W into 8Ω)
- Input impedance: 15K // 100pF
- Rated max power output THD < 1%: 2 x 75W RMS (8Ω) , 2 x 115W (4Ω); (Vmains = 230V , THD < 1%)
- Peak Output Current: +/- 15A
- Frequency Response: +/- 0.1dB (10Hz – 20kHz) +/- 3.0dB (1Hz – 100kHz)
- Channel Imbalance: < 0.2dB (10Hz – 20kHz)
- Total Harmonic Distortion (THD): <0.002% (Power Out= 50W @ 1kHz, BW = 20Hz – 20kHz) Signal-to-noise Ratio: > 107dB (BW = 20 – 20kHz ); >109dB(A-weighted BW = 20 – 20kHz)
- Damping factor: >100 (8Ω Load @ 1kHz)
- Dimensions: 3.1 x 17.5 x 13"
