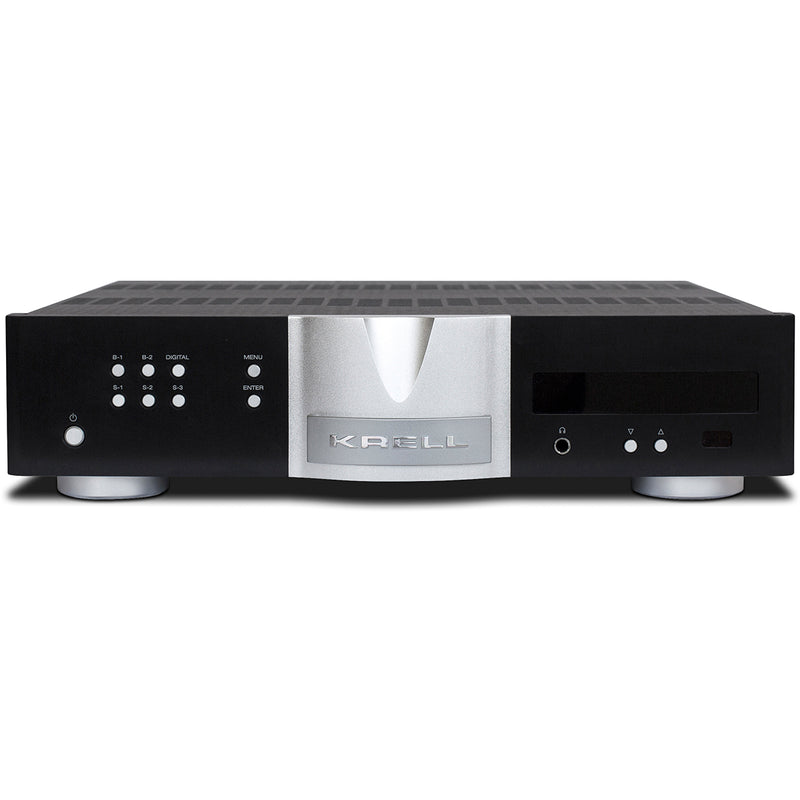

The Illusion II is the perfect centerpiece for a world class digital and analog audio system. Added to the normal selection of balanced and single- ended inputs are five digital inputs. The digital module features AES/EBU, coaxial, and optical digital inputs for use with streaming devices or other digital sources.

Specifications and Features:

• Analog Inputs:
  • 2 pr. balanced via XLR connectors
  • 3 pr. single-ended via RCA connectors
• Digital Inputs:
  • 1 AES/EBU via XLR connector
  • 2 coaxial via RCA connectors
  • 2 optical via Toslink connectors
• Main outputs:
  • 1 pr. balanced via XLR connectors
  • 1 pr. single-ended via RCA connectors
• Headphone output:
  • 1 via 3-conductor 6.35 mm (1/4 inch) connector
• Control inputs:
  • 1 RS-232 input via a 9-pin D-subminiature connector
  • 1 remote IR detector input via a 3-conductor 3.5 mm connector
  • 1 12 VDC trigger input via 2-conductor 3.5 mm connector
• Control outputs:
  • 2 individually programmable 12 VDC trigger outputs via 2-conductor 3.5mm connectors (30 mA maximum per output)
• Dimensions:
  Preamplifier only:
  • 17.3 in.W x 3.8 in. H x 18.3 in. D
  • 43.8 cm W x 9.7 cm H x 46.4 cm D
