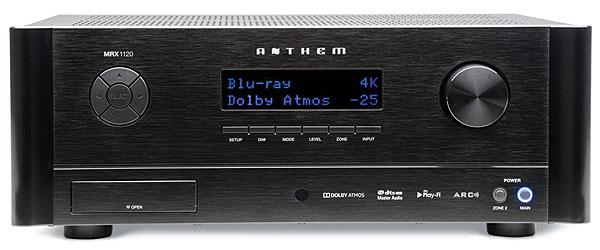

Anthem MRX 1120 A/V 11.2 Receiver (Demo )
Choose options
SPECIFICATIONS:
This handsome looking piece of gear supports Dolby Atmos decoding out of the box and will support DTS:X decoding, by years’ end, with a future firmware update that can be user installed. The MRX 1120 comes equipped with 11 channels of amplification on board, with the main five channels rated at 140 watts into 8 ohms and the remaining six channels rated at 60 watts into 8 ohms. Also included in the package is the latest version of Anthem’s acclaimed ARC 2 room correction system, and DTS Play-Fi which supports streaming services like Spotify, Pandora etc.
Anthem MRX 1120 A/V Receiver
-
Excellent design and build quality.
-
11 channels of amplification.
-
Amplifier channels handle 4 ohm speakers with ease.
-
ARC 2 room correction produced an exceptional level of quality sound.
-
6 HDMI 2.0a inputs supporting HDCP 2.2 and 4K video.
-
No analog video inputs.
Design:
11.2 channel home theater receiver
DACS:
AKM AK4458 (D/A), AKM AK5358 (A/D)
DSP:
32 bit, quad core processor
Surround Codecs and Listening Modes:
Dolby Atmos, Dolby TrueHD, Dolby Surround, DTS:X (via future firmware update), DTS-HD Master Audio, DTS Neo: 6, Anthem Logic, All Channel Stereo
Rated Power Output:
5 x 140 watts continuous – Two channels driven @ 1% THD into 8 ohms; 6 x 60 watts continuous – Two channels driven @ 1% THD into 8 ohms
Number of Zones:
2
Room Correction:
Anthem Room Correction (ARC 2)
Amplifier Type:
Class A/B (5 main channels), Class D (6 rear and height channels)
Inputs:
HDMI (6 rear HDMI 2.0a, 1- rear HDMI 1.4 with MHL support, 1 front HDMI 1.4 with MHL support), SPDIF Coax (2), Toslink (3), RCA Analog (5 Stereo Pairs), USB (1 rear, 1 front for service and updates), RS232 (1)
Outputs:
HDMI (2 HDMI 2.0a, one has Audio Return support), Toslink (1), RCA Analog (11 channel pre-outs, 2 subwoofer outputs, 1 stereo pair for Zone 1, 1 stereo pair for Zone 2), Speaker terminals (11 pair, all powered)
Tuner:
FM
Accessories:
Remote control, calibrated microphone, mic stand, Software installation disc, USB cable, Ethernet cable, Wi-Fi antennas
Dimensions:
6.5″ H x 17.25″ W x 14.75″ D
Weight:
32 pounds
