The Lexicon DD-8 redefines the state-of-the-art for multi-room distributed audio applications. Taking advantage of HARMAN’s pioneering DriveCore™ amplifier technology, the DD-8 delivers eight channels of 125W each in a chassis only one rack space high. The foundational DriveCore circuitry seamlessly integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. With five patents applying to the advanced feedback, modulation and output stage technologies, DriveCore’s front-end drive circuits leverage the inherent efficiencies of Class D designs while delivering the audiophile performance of advanced AB designs. The 90%+ efficiency of the DriveCore stage means everything stays cool and no fan is required so your equipment racks stay ultra-quiet. Plus the DD-8 meets the future 0.5W low power consumption ratings and in fact uses less power during normal operation than many traditional amplifiers do at idle. While this much efficiency and power is indeed impressive, it is nothing without control and in this respect the DD-8 delivers with a full-complement of features including local and bus inputs, stereo/mono selection, channel output level controls and system triggers.

Specifications and Features:

• Multi-patented DriveCore Amplifier Technology
• 8 channels each with 125W into 8-ohms, All Channels Driven
• High-efficiency, Quiet Convection-cooled Design

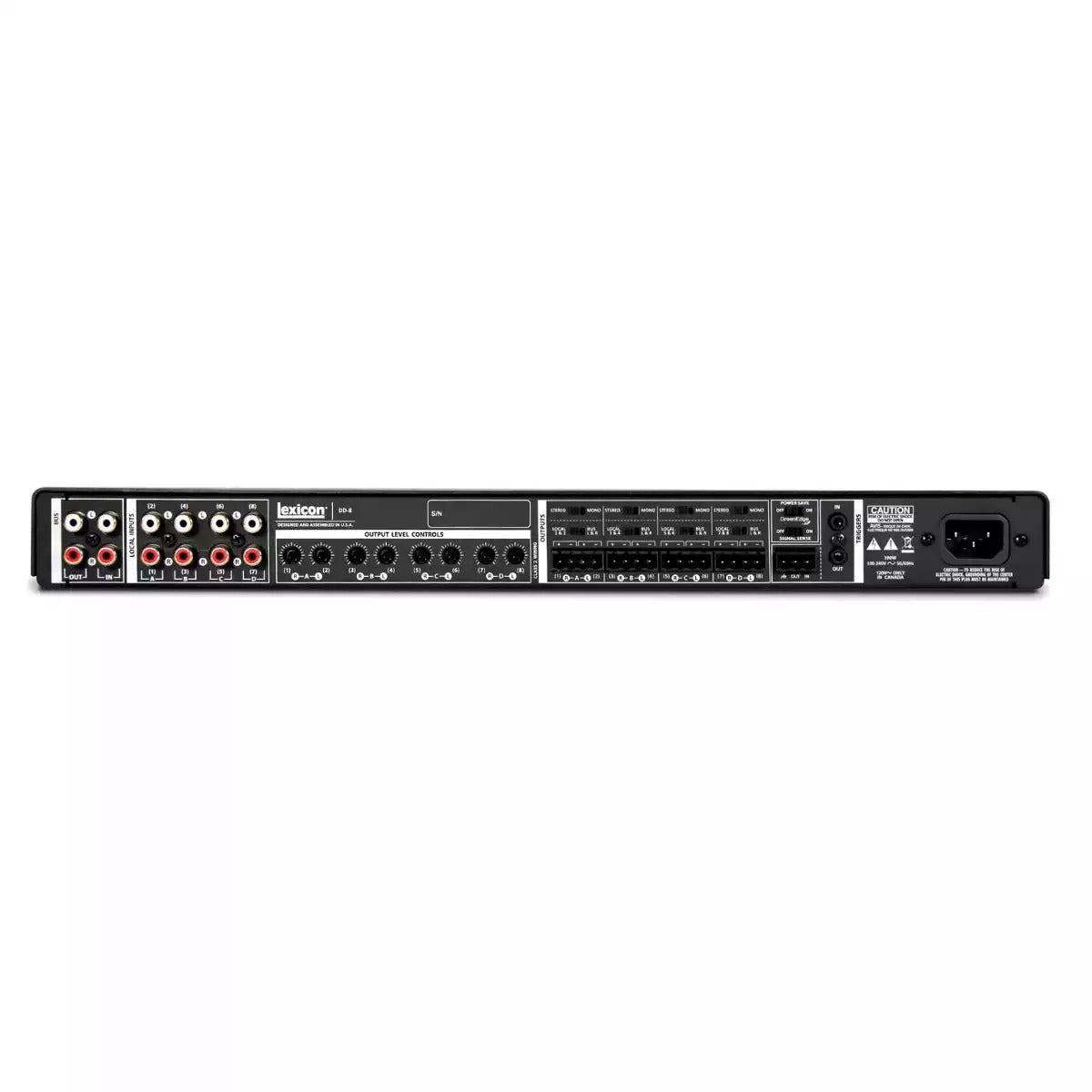

• Local/Bus RCA Input Selection and Independent Channel Output Level Controls
• 12V Trigger Input/Output and Signal-sensing Channel Inputs
• Power Save Low-power Consumption Standby Mode (Less than 0.5W)

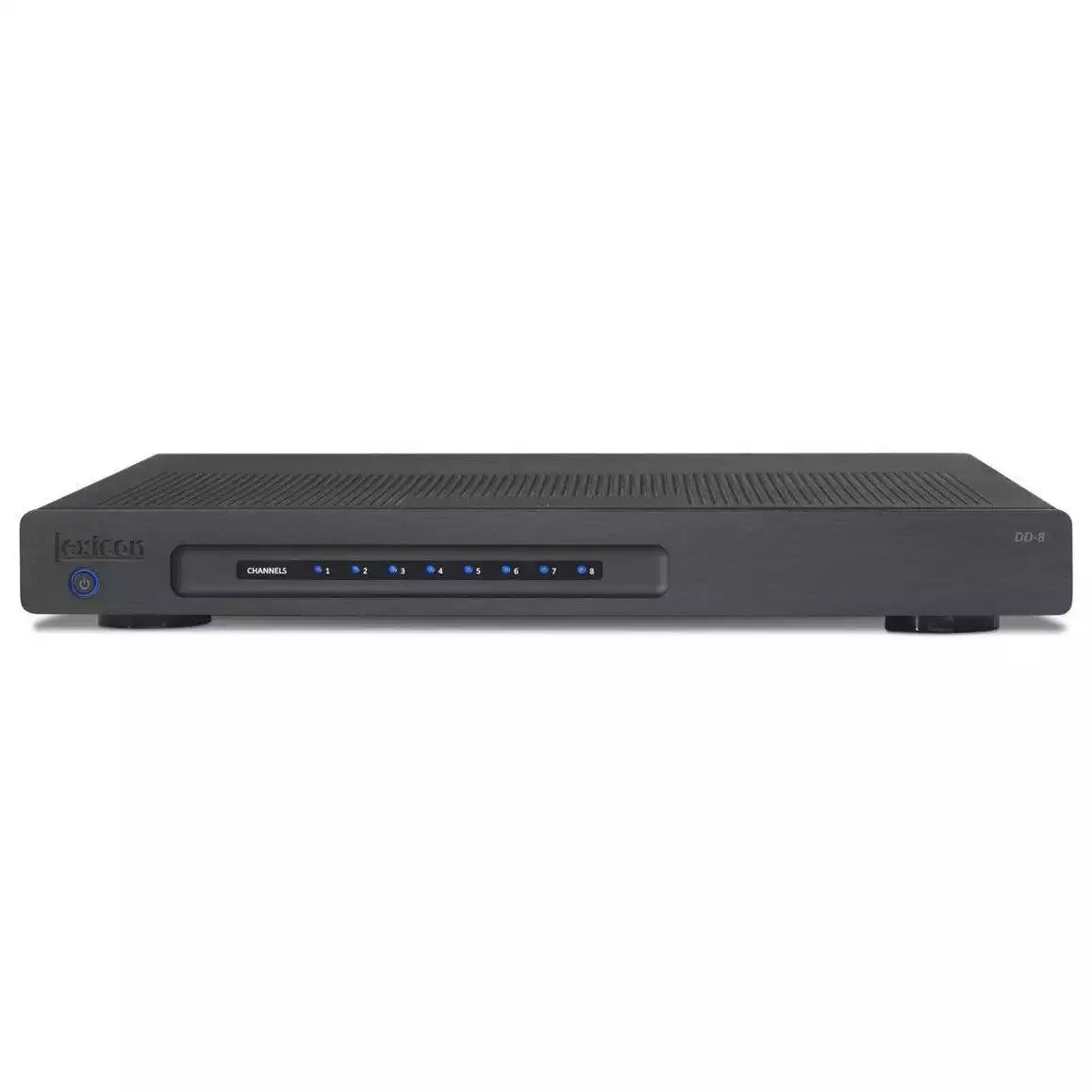

• Front Panel Standby Power Switch and Channel Status with Indicator LED’s
• Short-circuit and Thermal Protection Circuitry
• Lightweight Chassis Only One Rack Space (1U) High
• Output Power: 125W RMS per Channel into 8 ohm from 20Hz-20kHz
• Frequency Response: 20Hz-20kHz+0dB/-1.5dB
• Total Harmonic Distortion (THD): Less than 0.05% at Full Rated Power 20Hz-20kHz
• Signal-to-noise Ratio: <-105dB Below Rated Full Power A-weighted
• Crosstalk: <-70dB @ 1kHz
• Input Sensitivity: 1.12 volts for 125W out into 8 ohms
• Gain: 29dB
• Input Impedance: 100K ohms typical
• Trigger Input: 5V minimum-15V maximum DC
• Dimensions (H x W x D): 2.1” (w/ feet) /1.7” (w/out feet) x 17.3” x 14.9”
• Weight: 9.2 lbs (4.2 kg)
• Power Requirements: 100-240VAC 50/60Hz 190W
