JVC
DLA-RS1200
Choose options

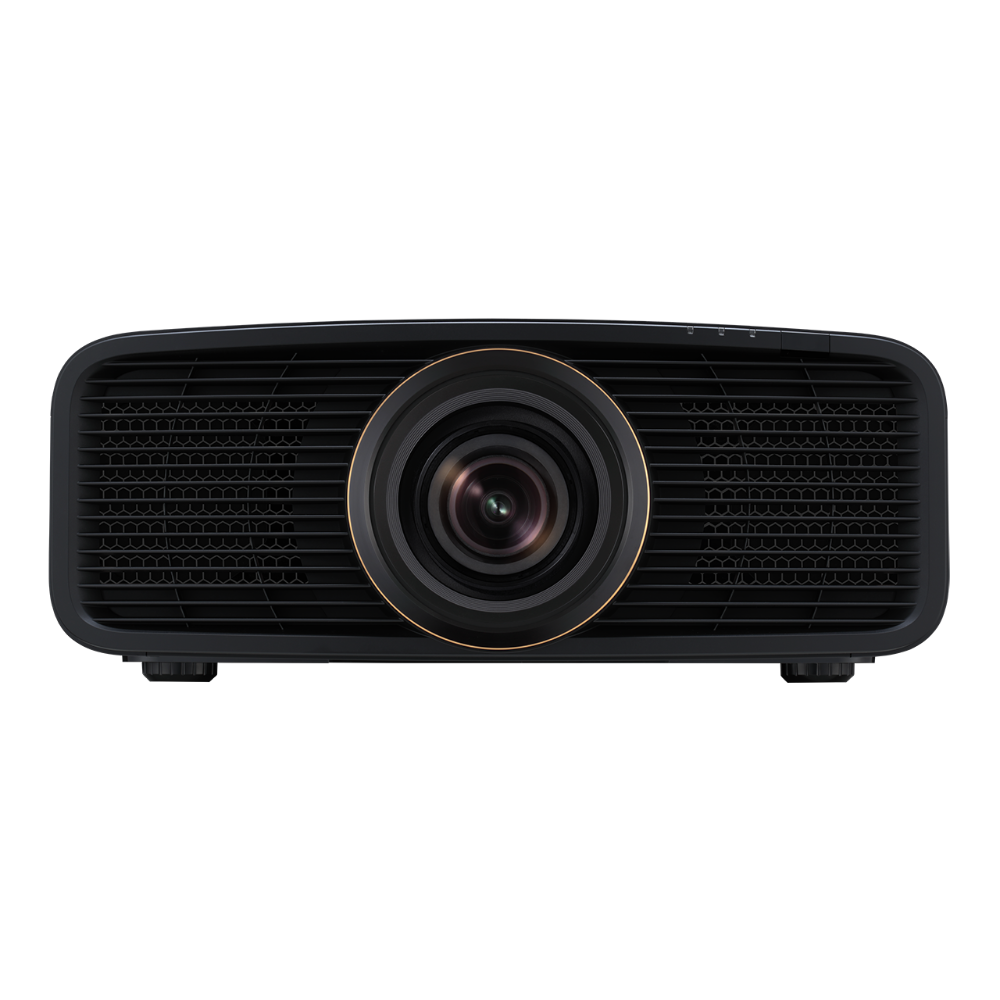

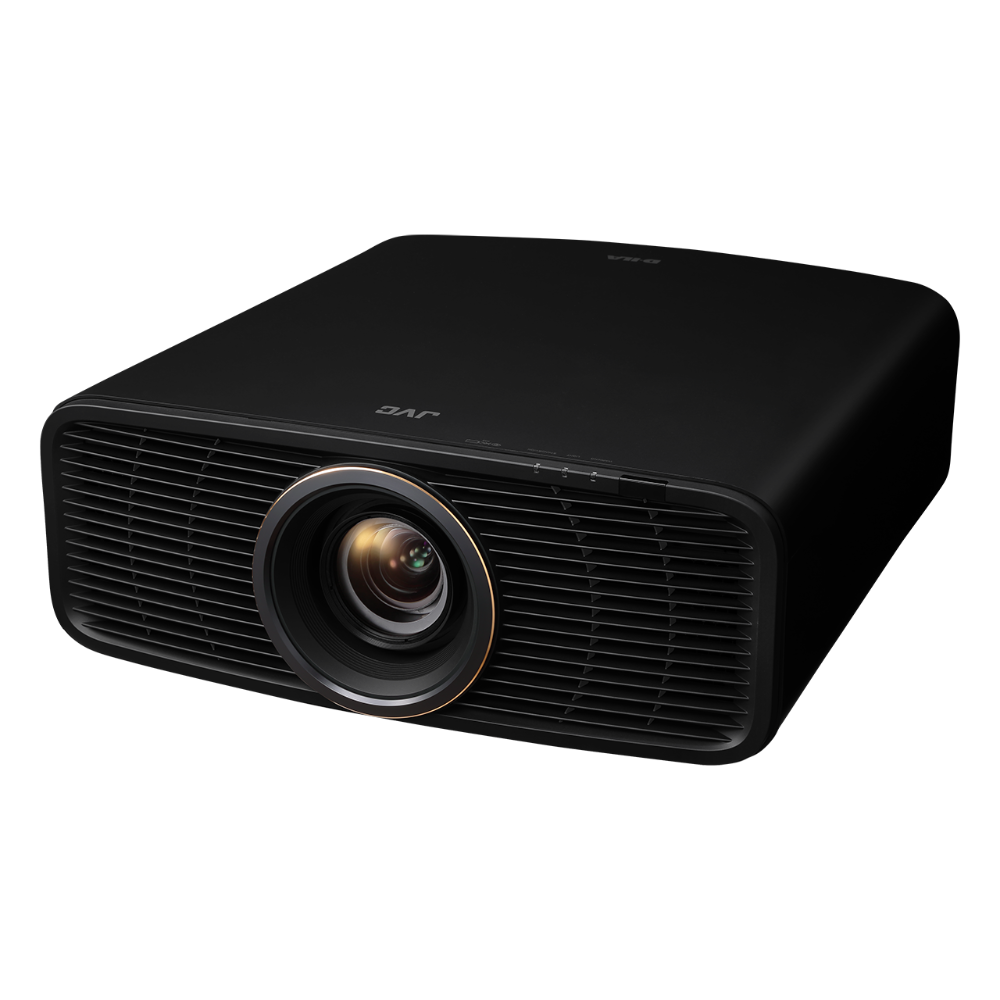

A compact, true 4K home theater projector with laser light engine and high contrast—designed for cinematic performance in controlled-light environments.
Core Features
-
True 4K resolution – 4096 × 2160 using three 0.69″ D‑ILA panels
-
Brightness – 2,000 ANSI lumens laser output
-
Light source – Blue‑laser phosphor (“BLU‑Escent”) with ~20,000 hr life
-
Contrast – 40,000:1 native; “infinite” dynamic contrast
-
HDR processing – Gen2 Frame Adapt HDR, supports HDR10, HDR10+, HLG & DML
-
Deep Black Tone Control – Enhanced black detail in dark scenes
-
Picture modes – Includes “Vivid” for punchy SDR (anime, games), plus Filmmaker mode
-
Motion – Basic Clear Motion Drive to reduce blur
Optics & Setup Flexibility
-
Lens – 80 mm, 15-element/11-group fully motorized 4K lens
-
Zoom – 1.6× motorized zoom
-
Lens shift – Motorized ±70% vertical, ±28% horizontal
-
Throw ratio – Approx. 1.34–2.14:1 (16:9) for 60–200″ image size
-
Lens memory & masking – Supports up to five calibrated installation presets; anamorphic support
Connectivity & Calibration
-

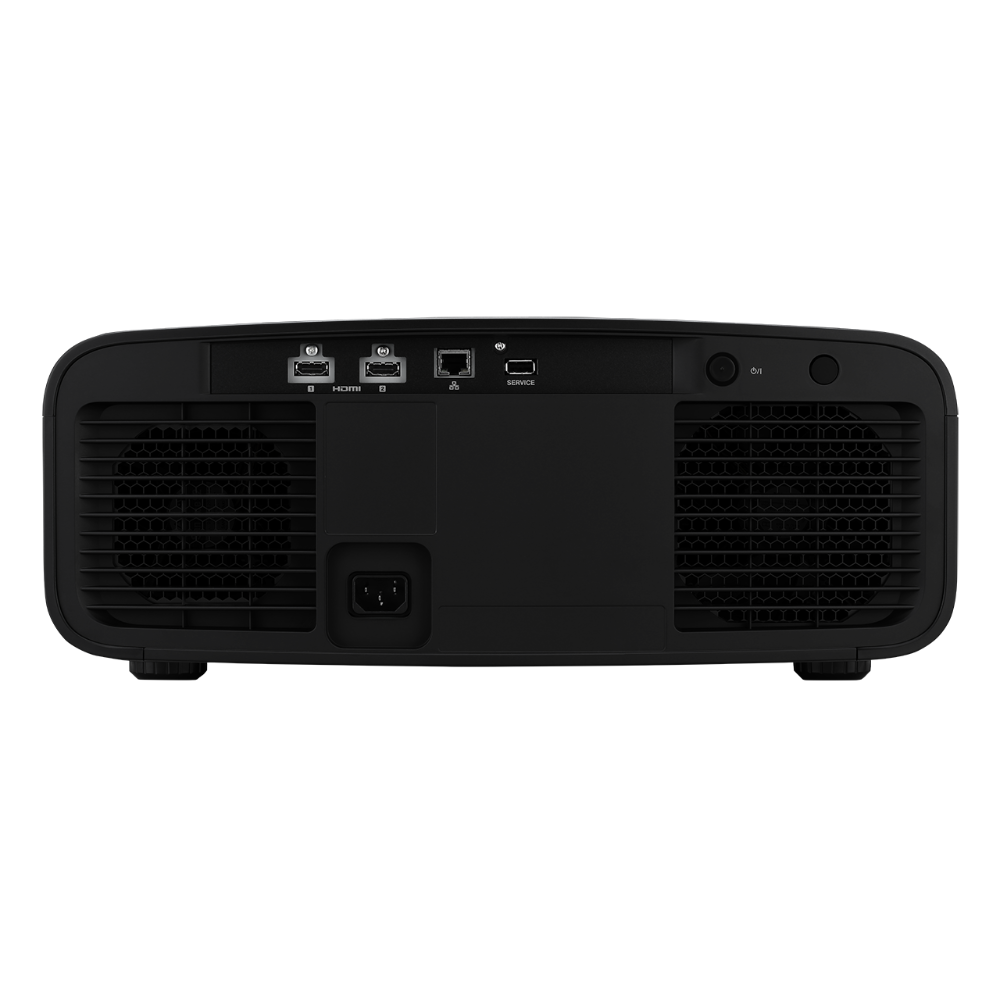

HDMI – 2 × HDMI 2.1‑capable (32 Gbps), HDCP 2.3, 4K/60 input
-
Wireless ready – LAN (RJ‑45), USB‑A for firmware/update
-
Calibration tools – ISF‑certified, built‑in auto calibration, 6‑axis CMS, 12‑bit gamma
-
Installation aids – Digital keystone, lens memory presets, screen‑adjust modes, low‑latency mode for gaming
Design & Operational Details
-
Size – Approx. 17.7″ × 7.1″ × 18.8″
-
Weight – ~32 lb (14.6 kg)
-
Noise – Around 23 dB in normal mode
-
Power – ~280 W operating; eco‑standby <1.5 W; universal 100–240 V input
-
Cooling – Front intake, rear exhaust to reduce image heat; notably smaller than previous models
Why It Stands Out
-
World’s most compact native 4K projector with laser—great for tight spaces
-
Stunning HDR thanks to Gen2 Frame Adapt and Deep Black Tone Control
-
Installation‑friendly with full motorized optics and extensive shift/keystone support
-
Rich feature set including Filmmaker mode, low‑latency for gaming, and auto‑calibration
-
Long-term reliability with 20,000‑hour laser and robust build
