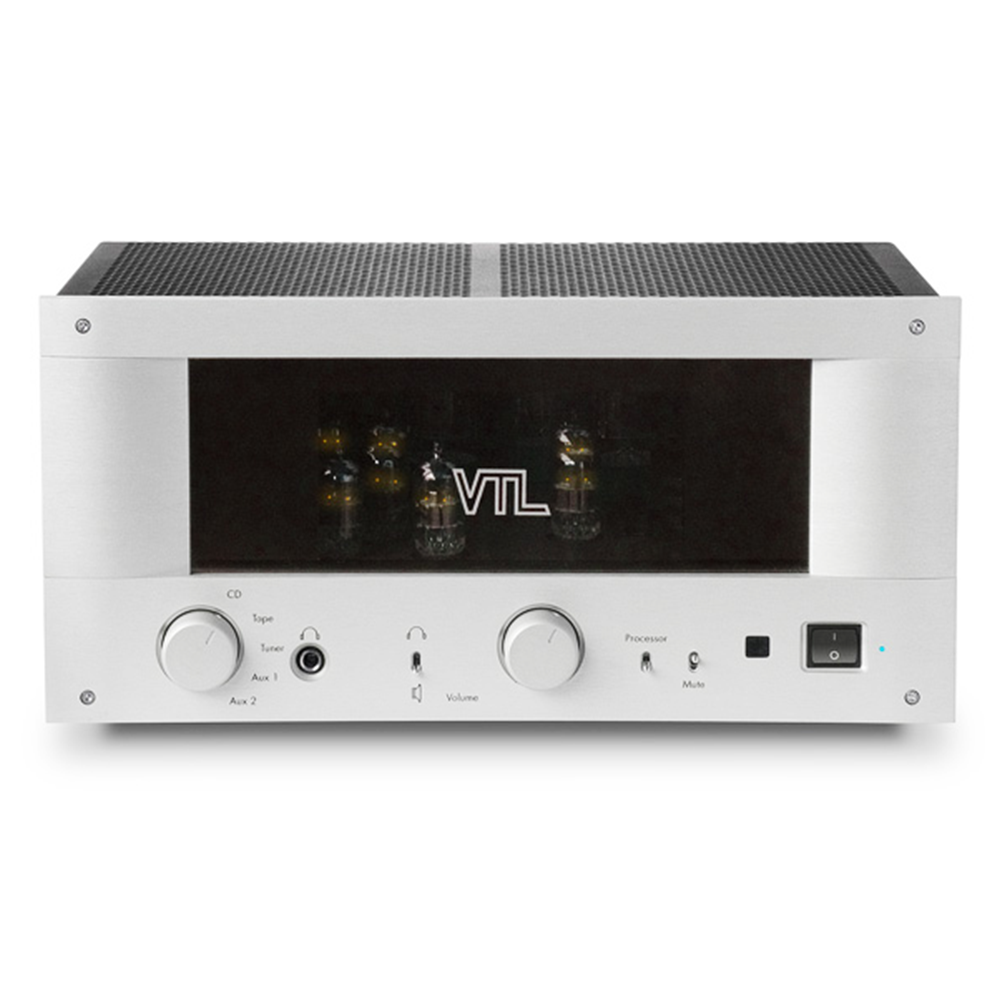

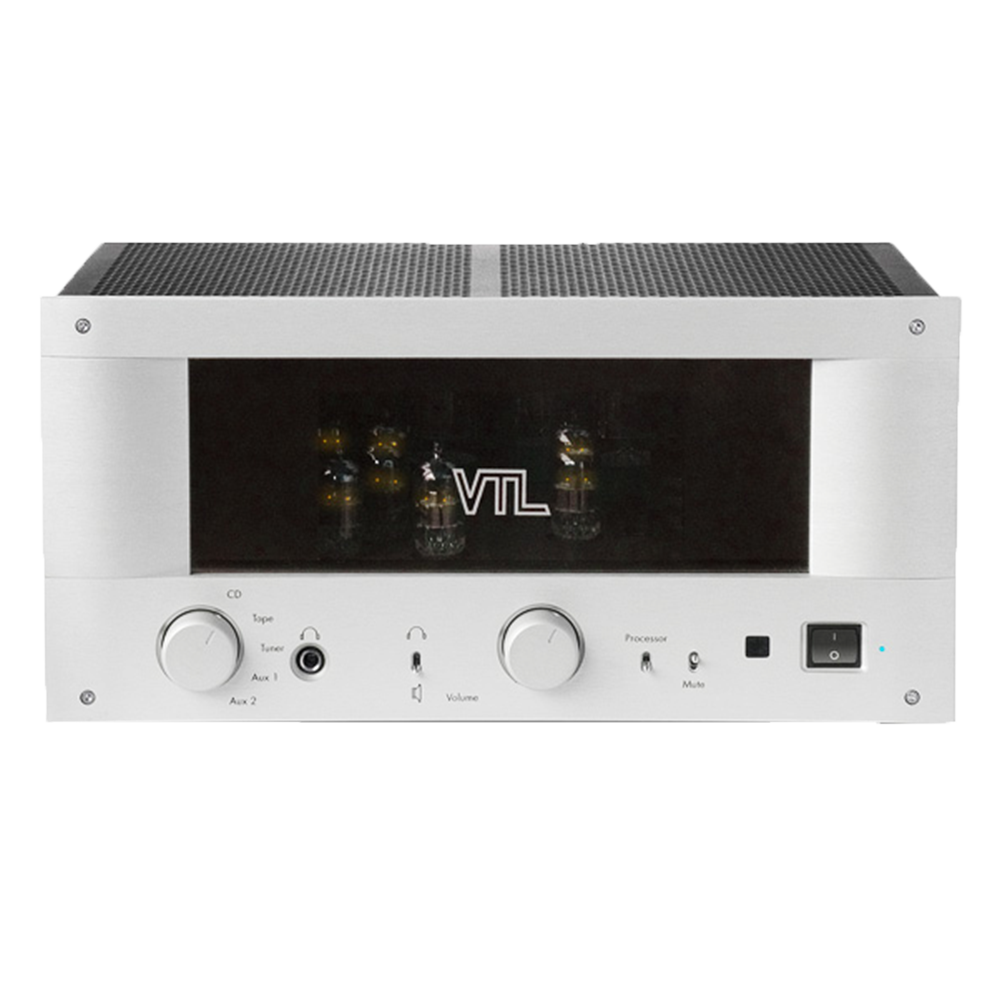

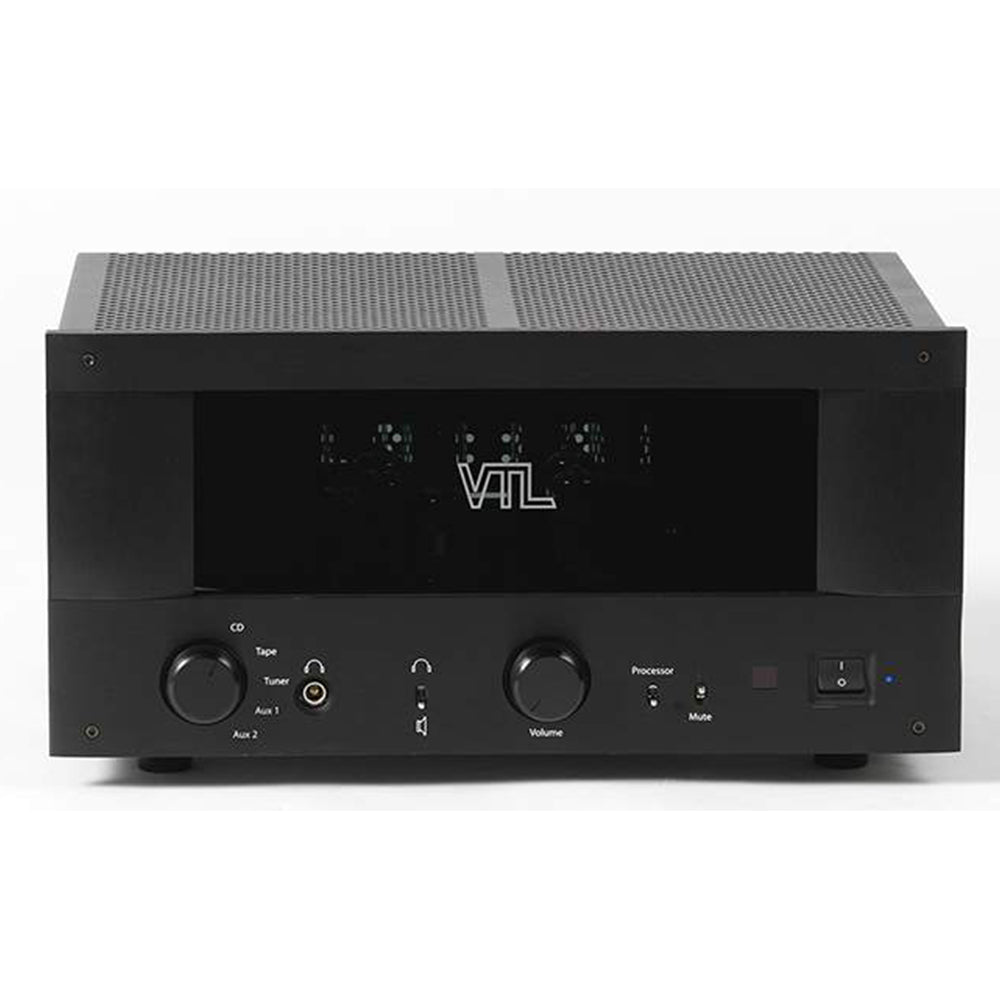

The VTL IT-85 Integrated Amplifier is designed for those who seek the simplicity of a single chassis system, but with the performance of separates. Designed with a fully active preamplifier stage, the IT-85 delivers a hearty 60 watts per channel with the sonic characteristic that is similar to our well regarded ST-85 Stereo amplifier and the TL2.5 preamplifier combination – fast, musical 3-D sound, and solid bass support that VTL is known for.
The IT-85 is a full linestage preamp and power amplifier in one chassis, and the linestage section has sufficient gain and a buffered output to be able to drive a subwoofer through the preamp out. The headphone section of the IT-85 is driven off the tube output stage and output transformer of the power amplifier section thus making it an ideal high performance pure tube headphone amplifier for headphone aficionados.
The IT-85 is designed to accommodate future upgrade — when you are ready to add a subwoofer, separate pre- or power amplifier, surround processor or headphones to your system, the IT-85’s many different output stage configurations can be easily and painlessly re-configured, often with just the flip of a switch. Hand built in our factory in California with the proven VTL quality, the IT-85 will give you lasting value and listening pleasure for years to come.
Specifications and Features:

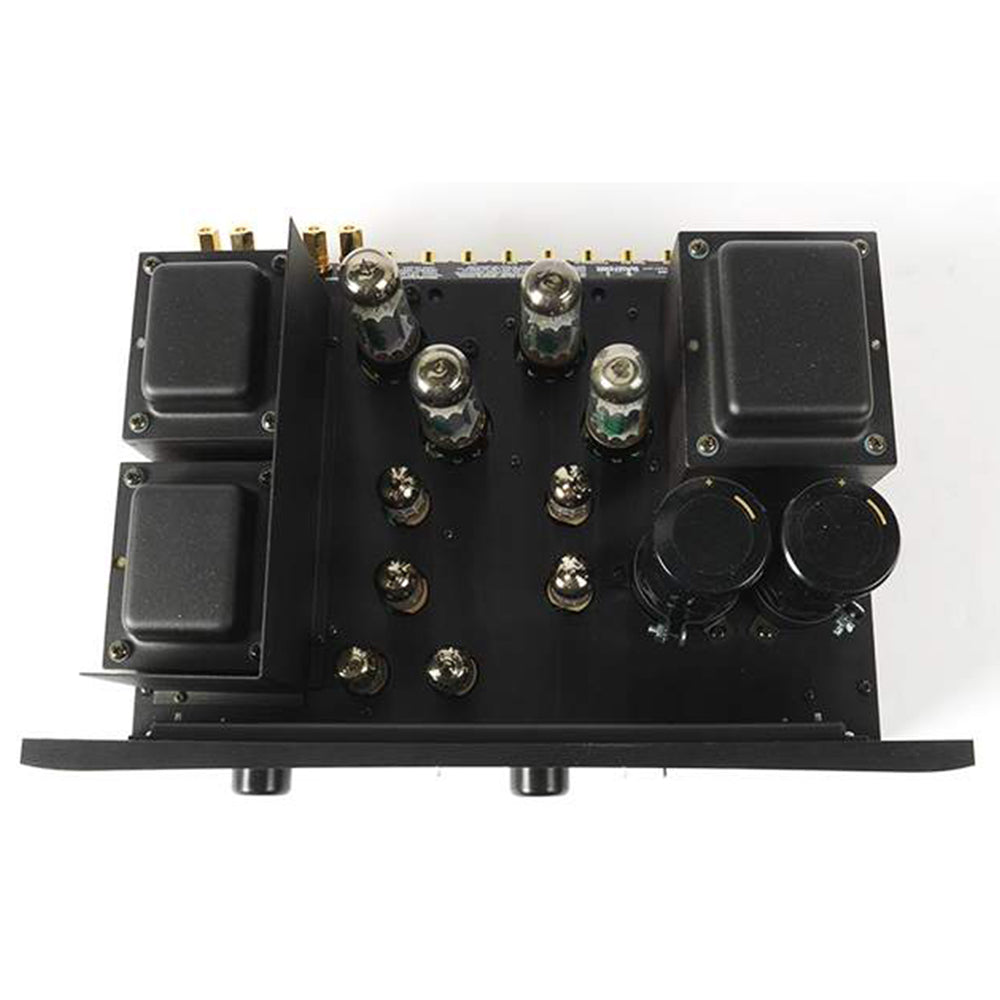

- Vacuum Tube Complement: 4 x EL34, 4 x 12AT7, 2 x 12AU7
- Output Power: 60 Watts
- 20Hz ‐ 20kHz <3% THD: Into 5 ohms
- Small signal frequency response: (<0.2% THD @ 1W), 0-60 kHz
- Class of operation: Class AB1

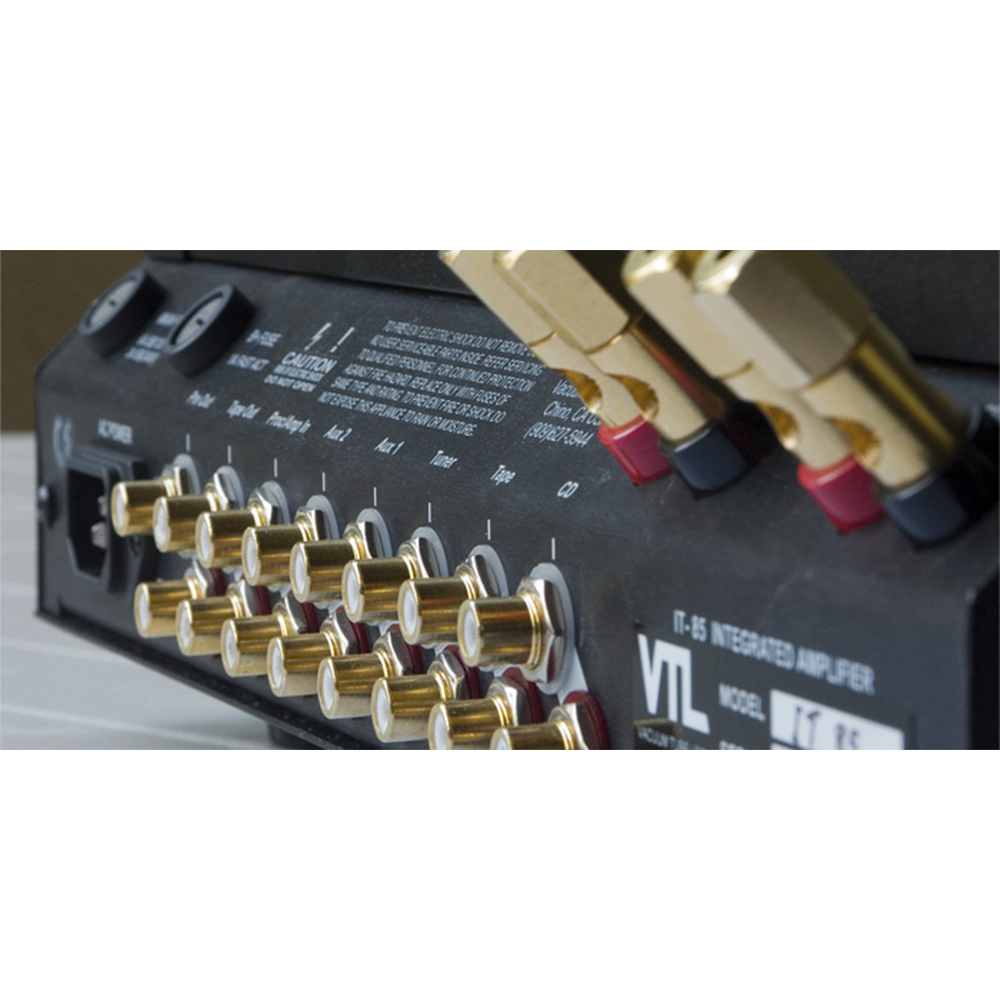

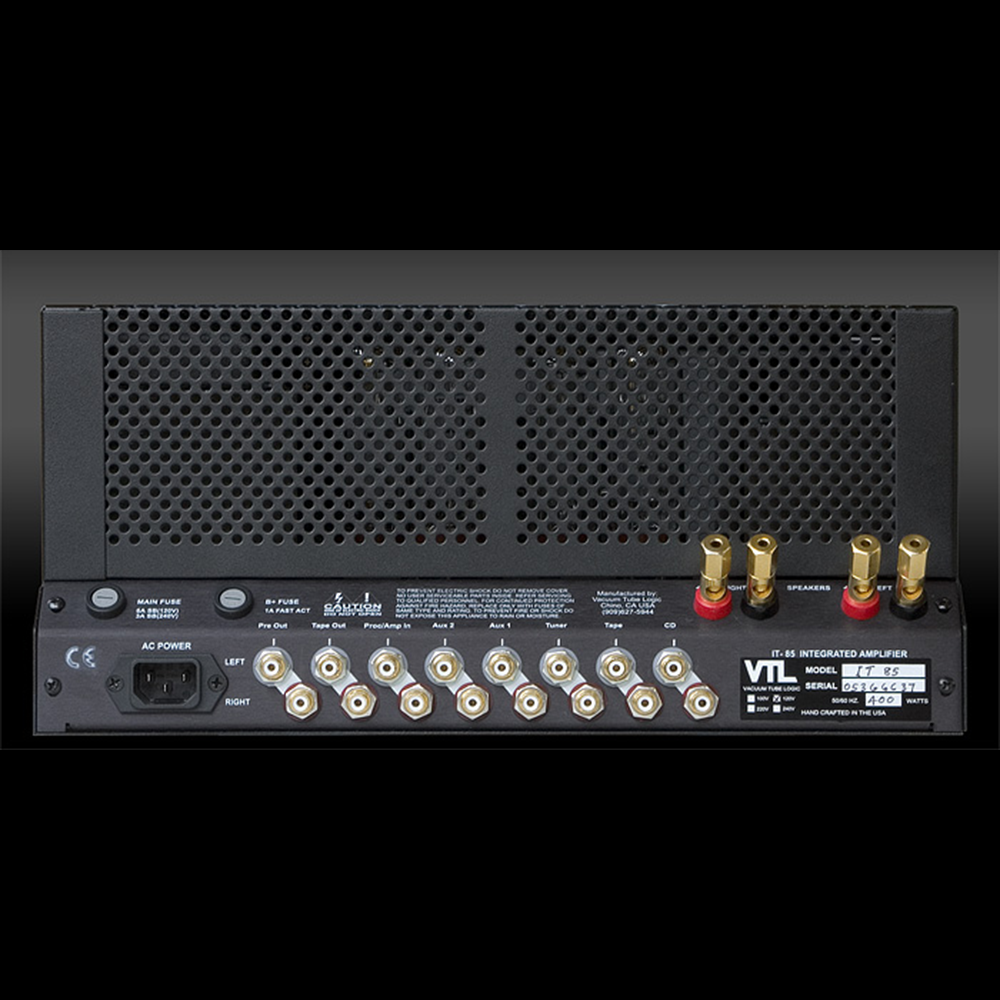

- Inputs: 5 pairs of single-ended RCA, Proc/Amp Input
- Outputs: 1 pair 5-way binding posts, Pre Out, Tape Out, Headphone Out
- Input sensitivity: Line in: 180mV, Amp in: 575mV
- Input impedance: Line in: 20kΩ, Amp in: 135kΩ
- Output impedance: Amp out: 1.55Ω, Headphone out: 16Ω, Preamp out: 400Ω
- Load setting:
- Speakers: 5Ω
- Headphones: 50-500Ω
- Power consuption:
- Ide = 200W
- Full Power=600W
- Dimensions W x D x H: 15.75 x 11 x 7 inches, 40 x 28 x 17.75 cm
- Weight: 55lbs (29.5Kg) fully packed
