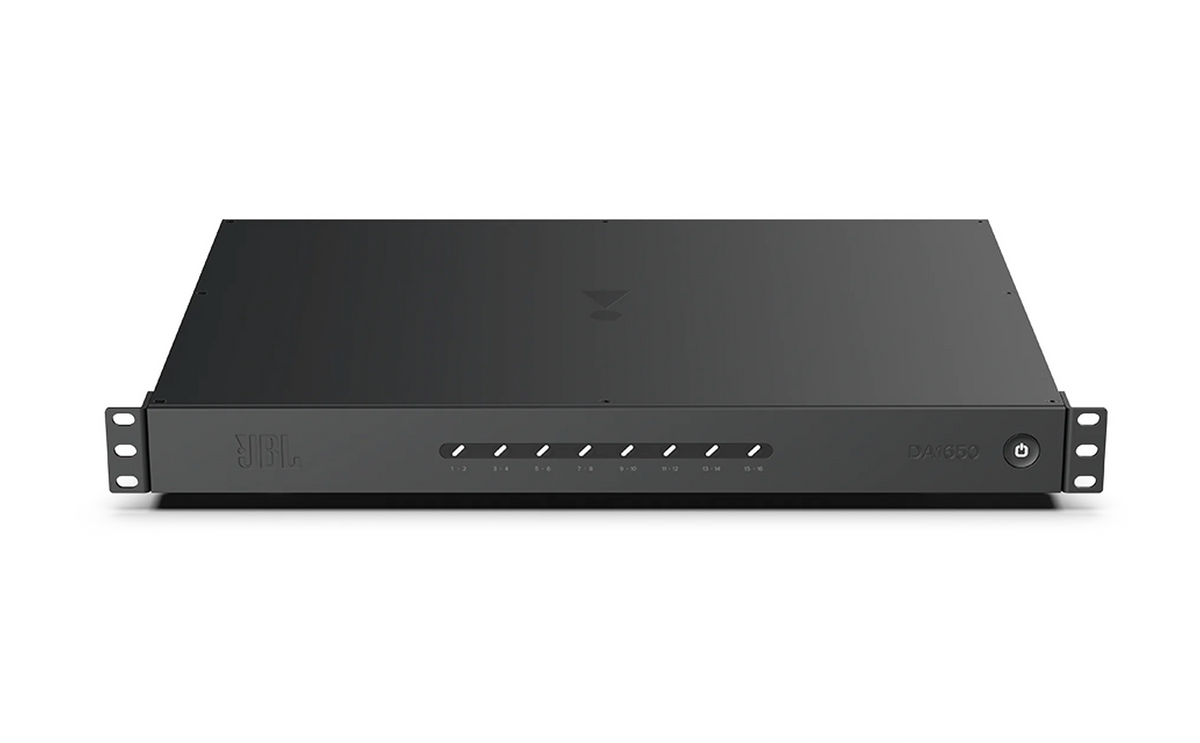

JBL DA1650 DA1650 DA1650 16-channel distribution amplifier (Demo)

FEATURES:

Engineered to work with any JBL architectural loudspeaker to deliver a fantastic high-resolution audio experience throughout the home, the DA1650 provides 8 zones of audio in a compact 1U design, providing maximum performance while taking up minimal rack space. Further configurability is supported with bridging of its Class D stereo channels into even more powerful mono outputs when needed. Each zone can have an independent source or share an audio source across all zones using the global audio input. Expand zones sharing an audio source across multiple amplifiers using the global audio output.

• Compact form factor in a single rack space, flat-stackable design

• Bridgeable outputs for high-power requirements

• Compact form factor in a single rack space, flat-stackable design

• Bridgeable outputs for high-power requirements

• Over-current and thermal protection prevent potential speaker damage

• Three power mode control options include 12V trigger, audio sensing inputs or always on

• Local and bus inputs, stereo/mono selection, and channel output level controls

• Over-current and thermal protection prevent potential speaker damage

• General Specifications

  Analog audio input

  16 x RCA (Single Ended)

  Stereo analog global output (global input looped to global output)

  2 x RCA (Single Ended)

  Speaker output

  Phoenix block connectors, accommodates up to 12AWG wire

  12V trigger control

  1 x 3.5mm (in), 1 x 3.5mm (out)

  Power

  Standard IEC

  Global input select

  8 x 2-position dip switches

  Bridge/Mono select

  8 x 2-position dip switches

  Power Mode select

  1 x 3-position switch – always on, 12V, auto sense

  FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)

  50W

  Power

  1kHz, 20ms burst, 2 channels driven, 0.5% THD max

  Rated Power (8Ω)

  50W

  Rated Power (4Ω)

  110W

  Rated Power (8Ω Bridged, one zone driven)

  185W

  Frequency Response

  20Hz-20kHz +/-0.5dB, at 1/8th power, all loads

  THD+N (max), at rated power, 20-20kHz

  <0.1%

  Signal to noise ratio (min), A-weight, 20-20kHz, analog input, 8 Ω mode

  >100dB

  Crosstalk between any zones, at 1/8th power

  -80dB

  Minimum output impedance

  2.7Ω

  Analog input impedance

  20kΩ

  Signal sense, wake up level

  1.75 mVrms

  Max undistorted analog input signal

  4.6 Vrms

  Fan noise, maximum, 1/8 power

  50dBA SPL @ 1 meter

  Power supply

  Universal Mains 100–240VAC 50-60Hz

  Standby power consumption

  Less than 0.5W

  Dimensions (H x W x D)

  1.7” x 17.2” x 12.7” (43.7mm x 436.0mm x 323.0mm)

  Dimensions inc. feet (H x W x D)

  1.75” x 17.2” x 12.7” (44.5mm x 436.0mm x 323.0mm)

  Net Weight

  4.5kg
