JBL

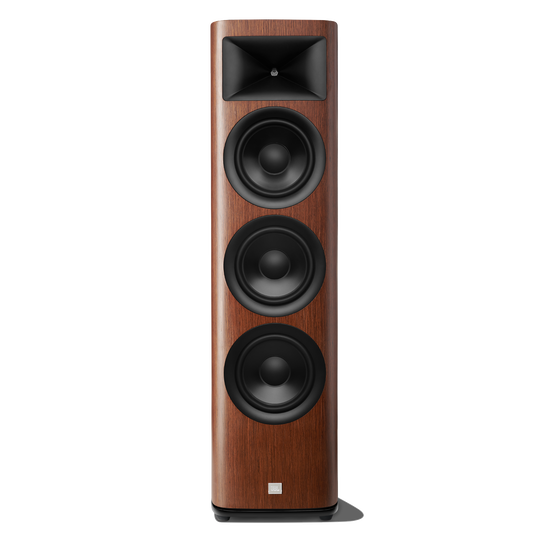

JBL HDI-3800 Triple 8-inch (200mm) 2 ½-way Floor Standing Walnut / Black Speaker (Mixed Pair))
Choose options
SPECIFICATIONS:
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-3800 is the flagship of the JBL HDI Series. This floor standing loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and triple 8-inch (200mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.
Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.
8" (200mm) Advanced Aluminum Matrix cast-frame woofers.
Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.
HDI-3800
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-3800 is the flagship of the JBL HDI Series. This floorstanding loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and triple 8-inch (200mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.
Enclosure TypeBass-reflex design with rear-firing port
High Frequency Transducer1-inch (25mm) Teonex compression driver
Low / Mid Frequency TransducersThree 8-inch (200mm) black Advanced Aluminum Matrix cone, cast frame woofers
Crossover Frequency800Hz, 1800Hz
Sensitivity (2.83V @ 1M)92dB
Nominal Impedance4 Ohm
Recommended Amplifier Power25W – 300W
Frequency Response37Hz – 30kHz (-6dB)
Dimensions (H x W x D)43.33 x 11.81 x 16.45” (1100.5 x 300.0 x 417.8mm)
Net Weight83.78 lbs (38.00kg)
