JBL

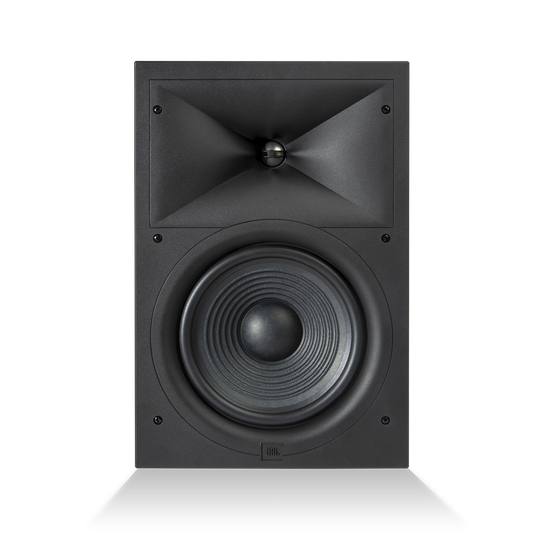

JBL Stage 280W 2-Way Dual 5.25" (130mm) In-Wall Loudspeaker (Demo) (Each)
Choose options
FEATURES:
or more powerful bass, the Stage 280W features an 8" (200mm) Polycellulose cone woofer and a 1" (25mm) Aluminum dome tweeter with an acoustic lens and HDI™ waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide
8" (200mm) Polycellulose cone woofer
Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.
Stage 280W
For more powerful bass, the Stage 280W features an 8" (200mm) Polycellulose cone woofer and a 1" (25mm) Aluminum dome tweeter with an acoustic lens and HDI™ waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen. Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.
General Specifications
High Frequency Transducer1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) horn
Low Frequency Transducer8" (200mm) Polycellulose cone woofer
Recommended Amplifier Power (Full Range)20-120W RMS
Frequency Response42Hz-25kHz (-6dB on-axis)
Sensitivity (2.83V@1m)90dB
Nominal Impedance8ohm
Crossover Frequency1700Hz
InputsNickel-plated spring-loaded connectors
Grille DimensionsH 15.7in (400mm) x W 10.5in (266mm)
Cutout DimensionsH 14.6in (372mm) x W 9.4in (238mm)
Mounting Depth3.9in (98mm)
Product Weight (Kg)2.8Kg
Shipping Carton DimensionsL 17.8in (453mm) x W 12.5in (318mm) x H 5.5in (140mm)
Shipping Carton Weight8.38lbs (3.8Kg)
