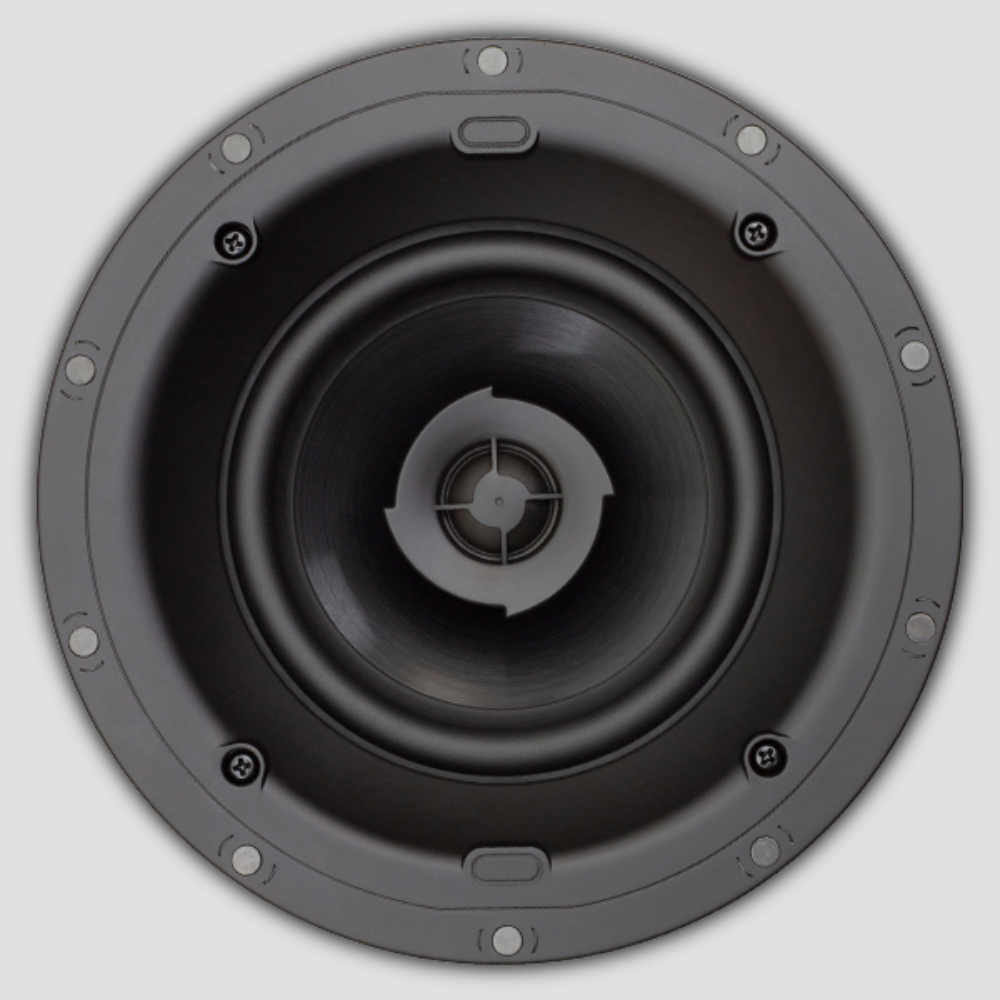

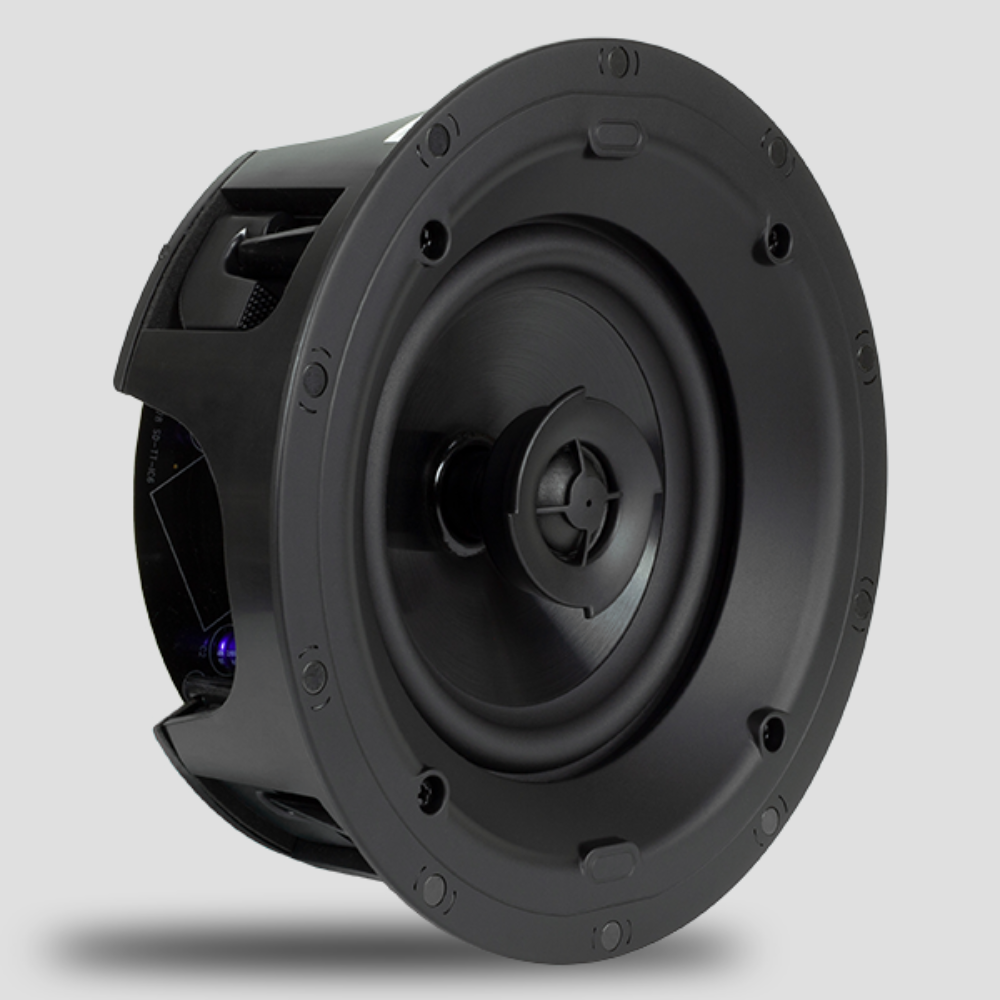

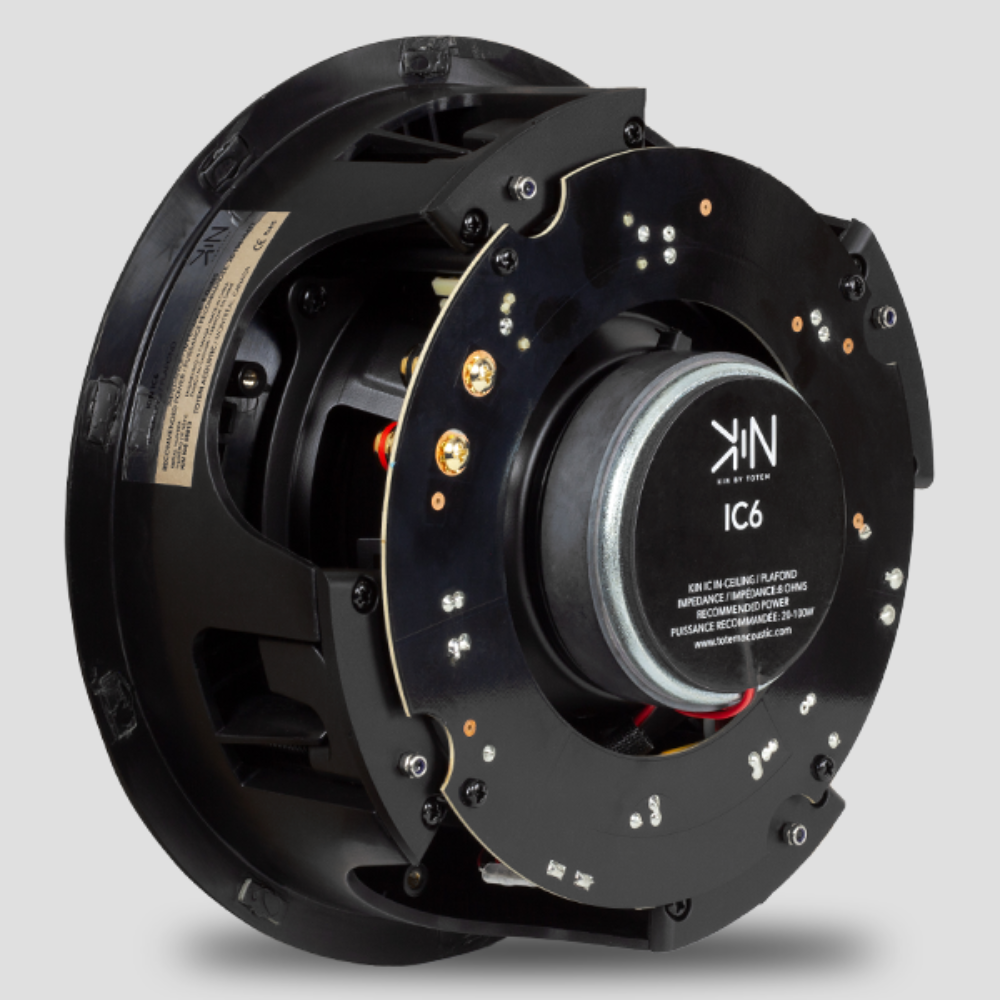

KIN IC6 In-Ceiling Speaker (Unit)

Stealth that Draws Attention

Proprietary driver technology and an extensive feature set establish the IC6 as the benchmark among 6” in-ceiling speakers for price versus performance.

The Kin Architectural IC6 seamlessly integrates into any living space but their stunning performance will inevitably draw attention. Due to its remarkable 75-degree dispersion, the KIN IC6 is easy to place in any room and can play much larger room envelopes than most architectural speakers. Totem’s signature powerful bass, smooth highs, and natural vocals are evenly spread throughout the room. A Low Volume Intelligibility switch even ensures that sound is as rich and detailed in applications where low volume listening is required.

KIN IC6 intermixes harmoniously with any existing traditional, on-wall, or architectural Totem speaker for a variety of multi-channel options. Kin Architectural models have stainless steel, magnetic grills and hardware so they’re weather resistant and ready for the outdoors under covered areas and soffits.

Discover your Kin Architectural and expand your musical experiences.

Product Details

• Design: 6 ½″ in-ceiling architectural speaker

• Frequency Response: 50 Hz – 30 kHz

• Recommended Amp Power: 20 W – 90 W

• Woofer: 6.5″ polypropylene custom-designed driver

• Tweeter: ¾″ soft dome tweeter with pivoting faceplate

• Impedance: 8 Ω

• Sensitivity: 90 dB (1 W, 1 m)

• Dispersion Pattern: Wide 75° coverage

• Dimensions (Diameter × Depth): approx. 234 × 101.6 mm (9.2″ × 4″)

• Cut-Out Diameter: 211 mm (8.38″)

• Weight: ~1.77 kg (3.9 lb) each

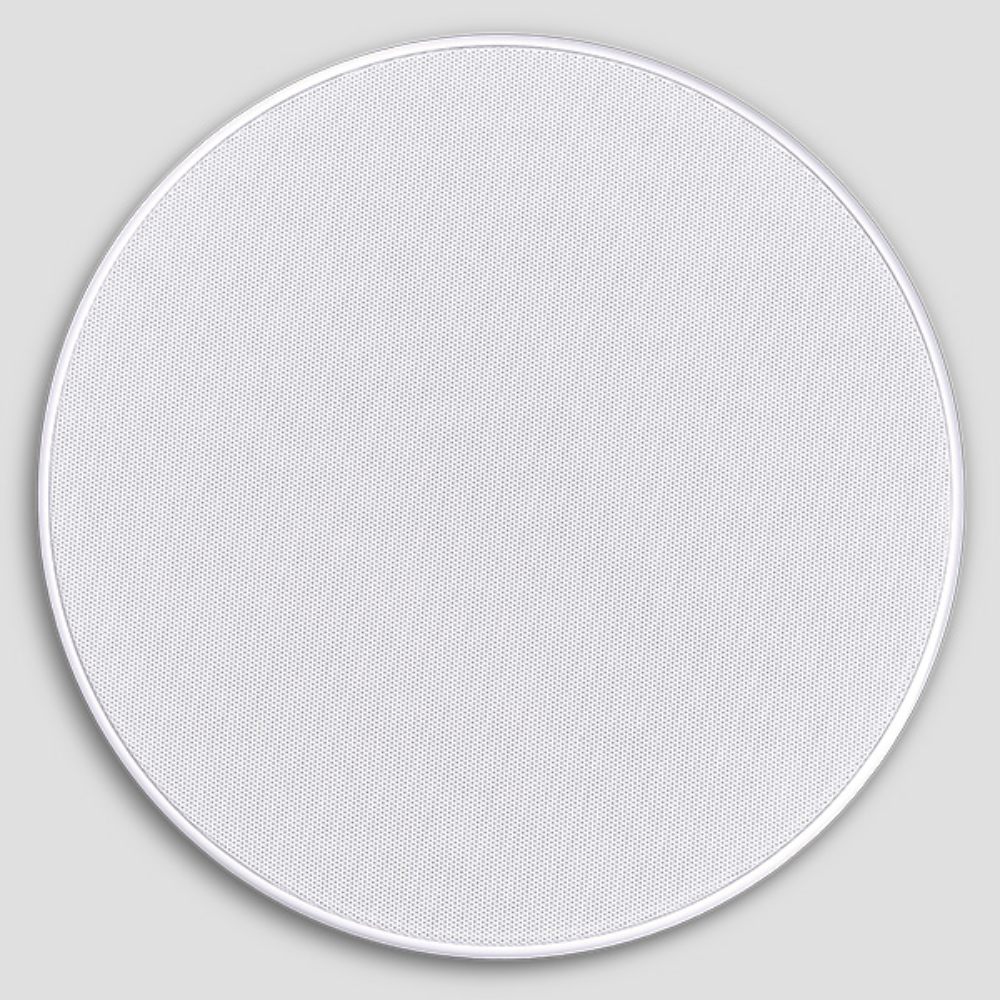

• Grille: Steel, magnetic, bezel-less, weather-resistant and paintable

• Terminals: Spring-loaded, gold-plated, supports up to 12 AWG wire

• Mounting System: High-torque nylon dog legs for single or double drywall

• Housing: Unified framework shield to protect components during installation

• Accessories: Pre‑construction bracket kit (PCK6); optional square grille kit (SGK6)

• Low‑Volume Intelligibility Switch: Enhances clarity at soft levels

• Weather Resistance: Stainless-steel hardware and grills—suitable for covered outdoor, bathroom, or sauna environments
