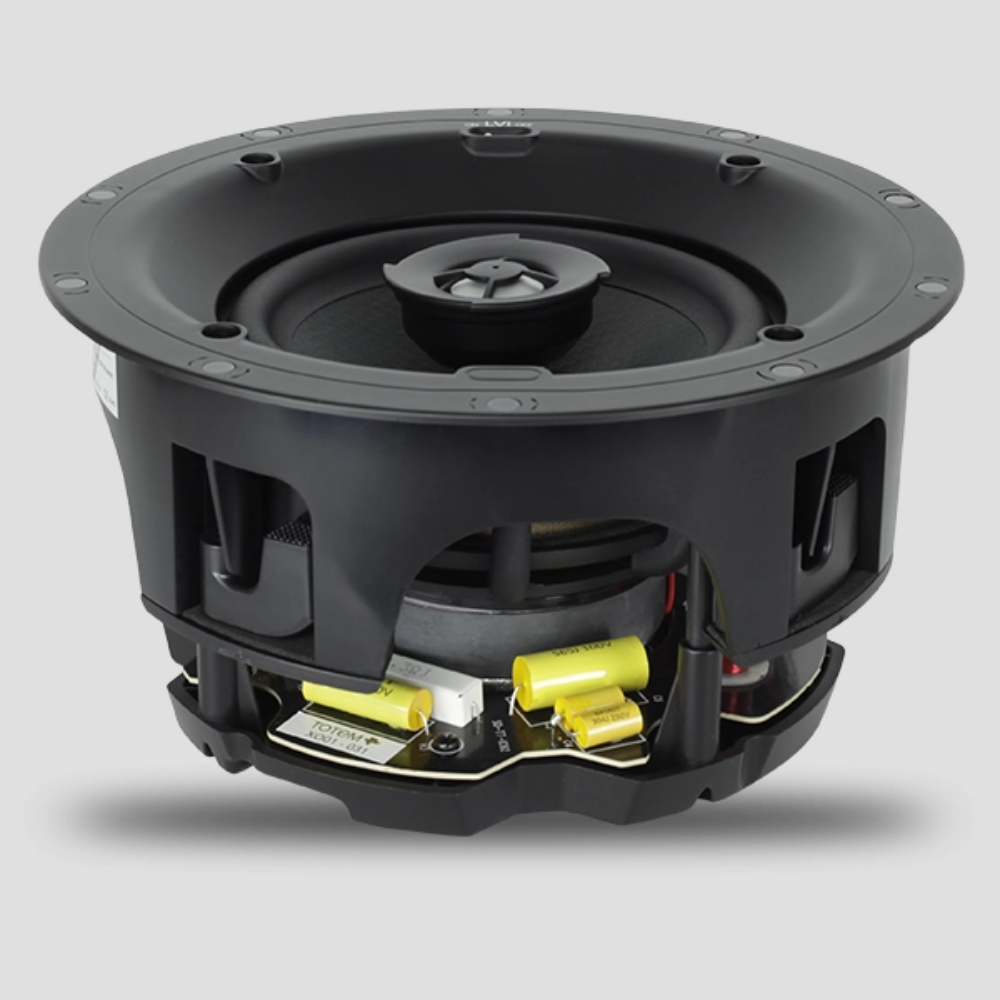

KIN IC62 In-Ceiling Speaker (Unit)

Artistic Truth

The IC62 is Totem’s premium 6.5” in-ceiling speaker in the KIN Architectural IC series.

The refinement of the IC62 expresses Totem’s mission is to develop loudspeakers capable of producing an involving performance that is true to the artist’s intention. They energize the area in manner that faithfully recreates the intimate moment and space of the original recording, yet disappear into the environment.

Exclusive MHEX Phenolic Honeycomb Woven Hybrid woofers in cast baskets synergize perfectly with customized ceramic dome tweeters to provide our characteristic phase linearity and unmatched realism. Dynamics are maintained at any listening level for all acoustic preferences or applications, from a high-powered home theater to low level ambient music.

Kin Architectural models have stainless steel, magnetic grilles and hardware so they’re weather resistant and ready for the outdoors under covered areas and soffits with the use of the optional Acoustic Back Can.

Discover your Kin Architectural and expand your musical experiences.

Product Details

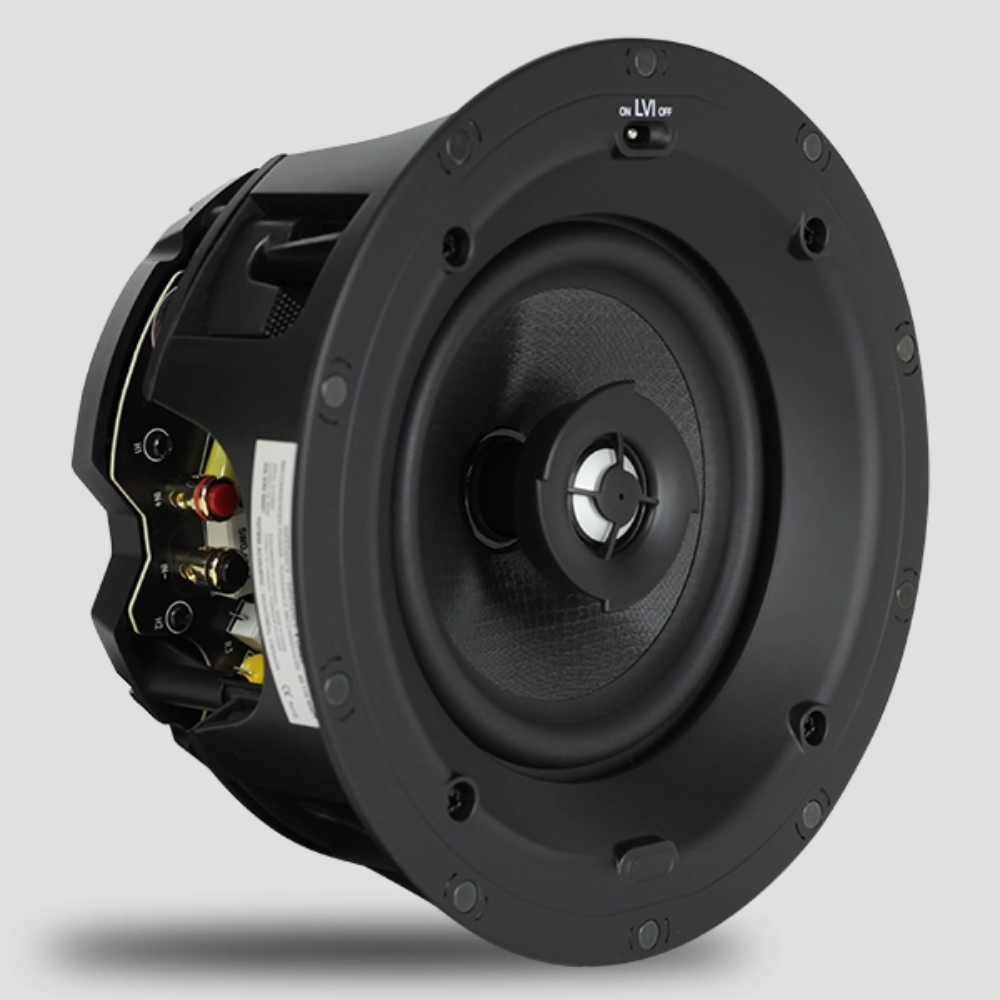

• Design: 6.5″ in-ceiling architectural speaker with Low‑Volume Intelligibility (LVI) equalization switch

• Frequency Response: 46 Hz – 30 kHz

• Recommended Amplifier Power: 20 W – 110 W

• Woofer: 6.5″ MHEX phenolic honeycomb woven hybrid in die-cast basket

• Tweeter: 1″ ceramic-coated aluminum dome

• Impedance: 8 Ω

• Sensitivity: 90 dB (1 W/1 m)

• Dispersion: 75° coverage

• Dimensions (Ø × Depth): 234 mm × 120.65 mm (9.21″ × 4.75″); with back can: 157.4 mm (6.19″) depth

• Cut‑Out Diameter: 211 mm (8.38″)

• Weight: 2.18 kg (4.8 lb) each

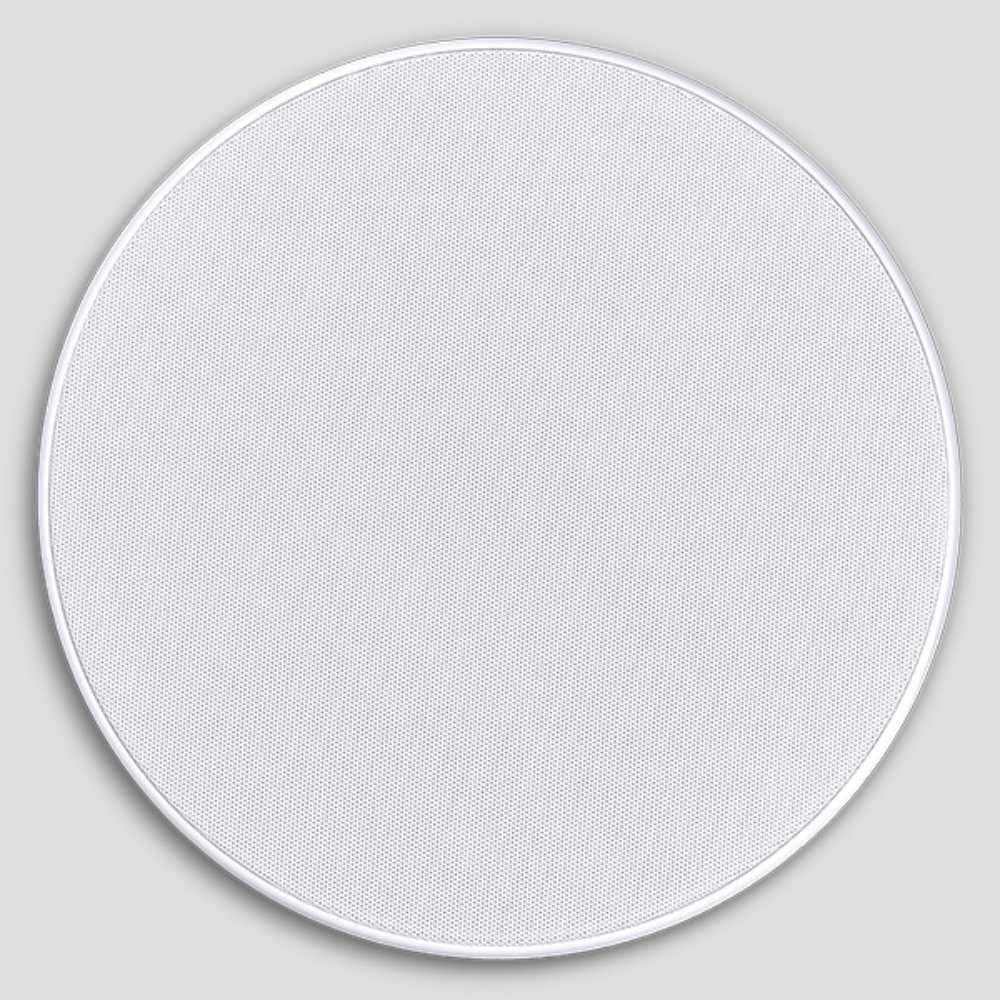

• Grille: Magnetic, paintable, stainless-steel, virtually bezel-less

• Terminals: Spring‑loaded, gold‑plated, accepts up to 12 AWG wire

• Mounting: High‑torque nylon dog‑legs for single or double drywall

• Protective Housing: Unified framework shield for component protection during installation

• Hardware: Weather‑resistant stainless steel—suitable for high‑humidity or covered outdoor environments

• Optional Accessories:

  • Pre‑construction bracket (PCK6)

  • Acoustic back can (ABC6)

  • Square grille kit (SGK6)
