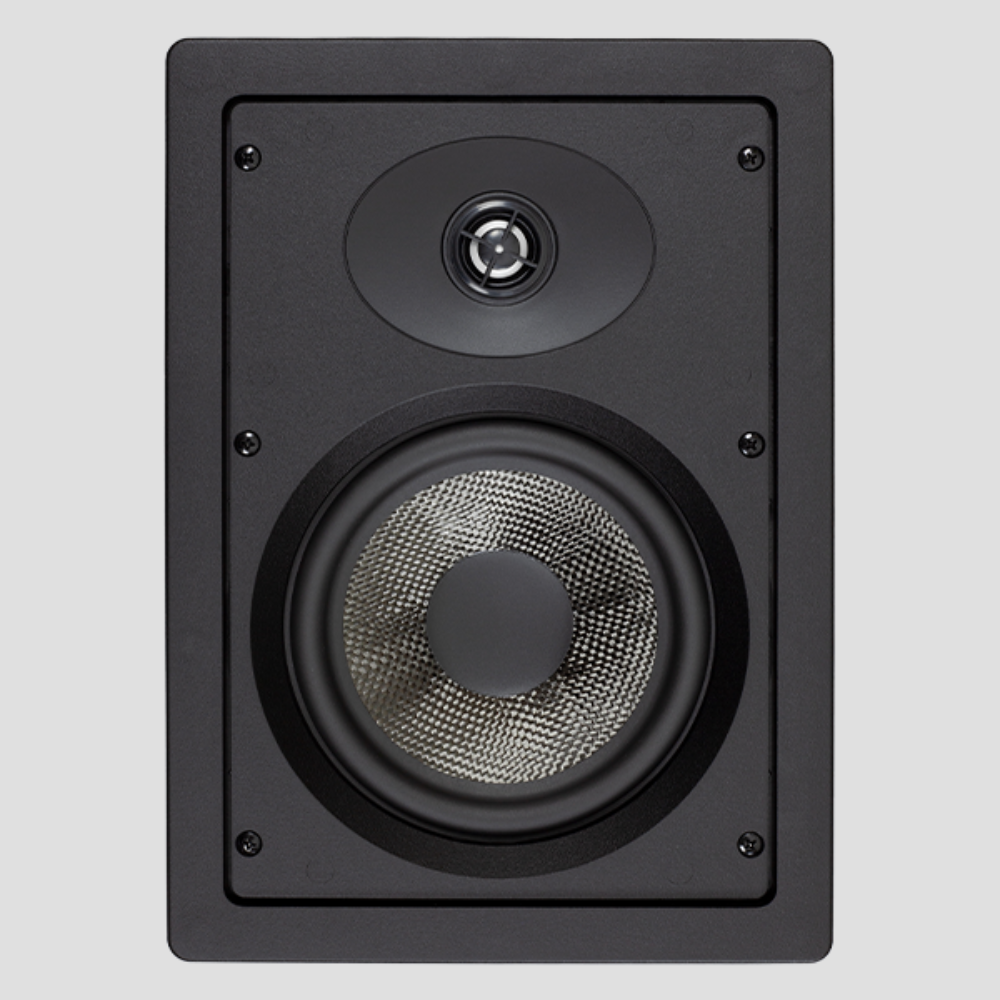

KIN IW6 Slim In-Wall Speaker (Unit)

A Wall of Sound

The shallowest of all Totem Architectural speakers fit effortlessly into the tight confines of standard construction framework, transforming them into walls of sensational Totem sound.

Powerful bass generated by the 6” carbon fiber woofer meshes flawlessly with the clear, precise highs emanating from a 1” ceramic tweeter. Totem’s incomparable dispersion will wholly occupy the entire space to ensure every spot of the living area sounds like a prime location. They also seamlessly intermesh with all other Totem speakers for omnipresent multichannel systems so fearlessly mix and match as required.

Discover your Kin Architectural and expand your musical experiences.

Optional Accessories

PCK W6:  Pre-construction kits facilitate installation before drywall has been installed.

Product Details

• Design: Slim-profile 6″ in-wall architectural speaker

• Frequency Response: 55 Hz – 25 kHz

• Recommended Amplifier Power: 10 W – 100 W

• Woofer: 6″ carbon-fiber cone

• Tweeter: ¾″ ceramic dome with pivoting faceplate

• Impedance: 8 Ω

• Sensitivity: 90 dB (1 W/1 m)

• Dispersion Pattern: 75° for broad sound coverage

• Dimensions (W × H × D): 229 × 315 × 89 mm (8.97″ × 12.4″ × 3.5″)

• Cut-Out Size: 190 × 277 mm (7.48″ × 10.71″)

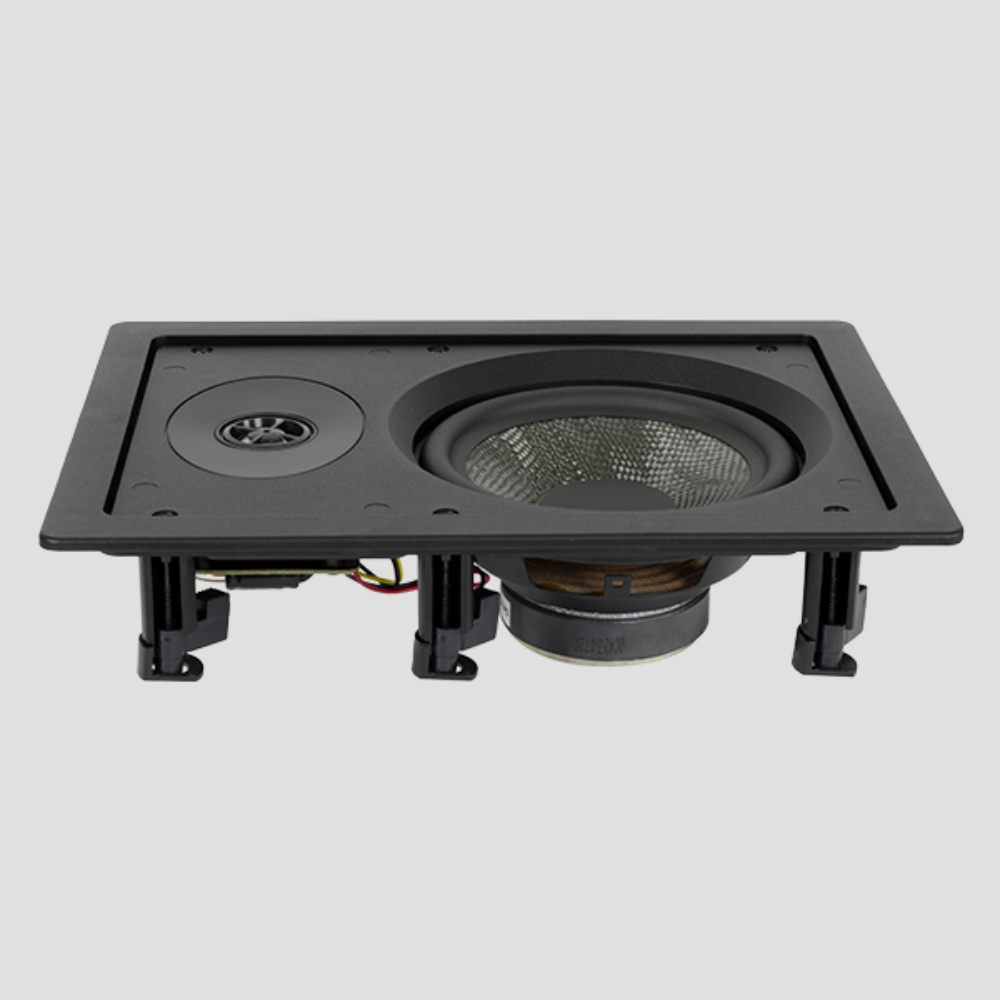

• Mounting Depth: 80 mm (3.14″) — ultra-shallow profile

• Weight: 1.34 kg (2.35 lb) per speaker

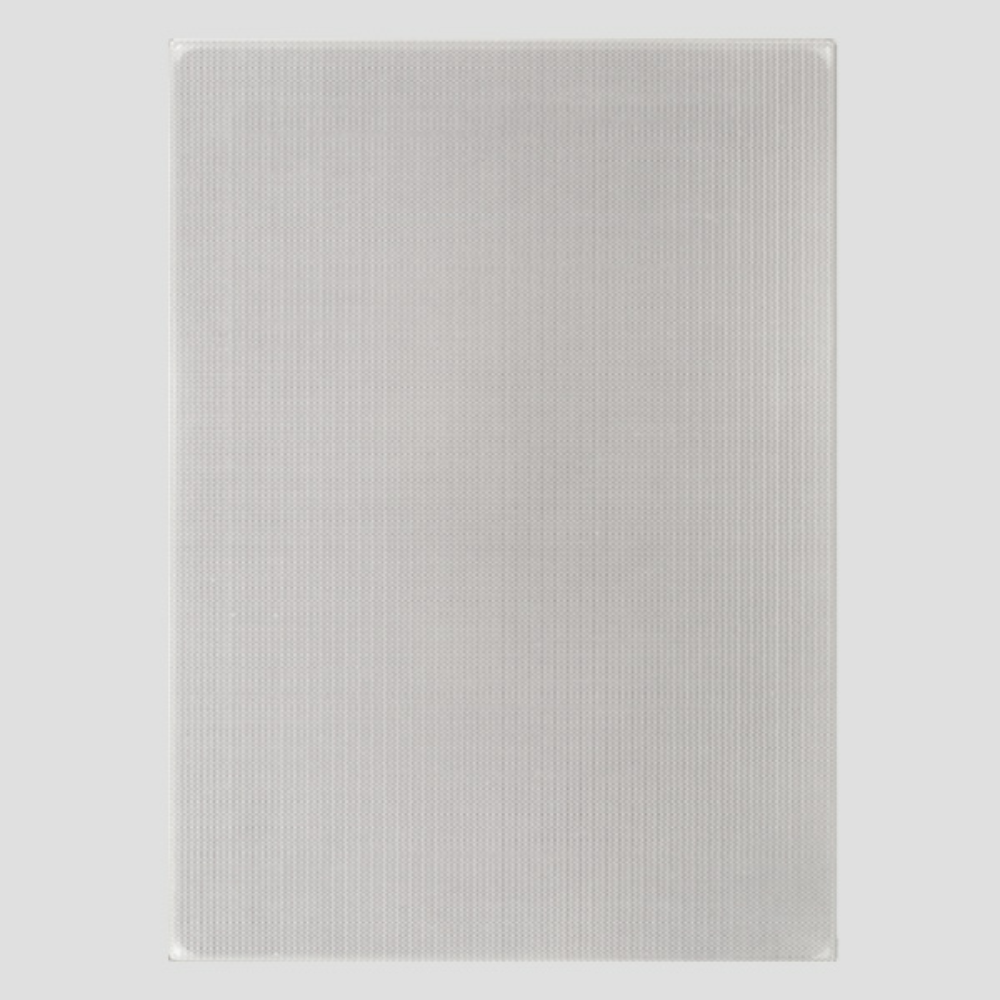

• Grille: Magnetic, paintable, stainless-steel, virtually bezel-less

• Terminals: Spring-loaded, gold-plated; supports up to 12 AWG wire

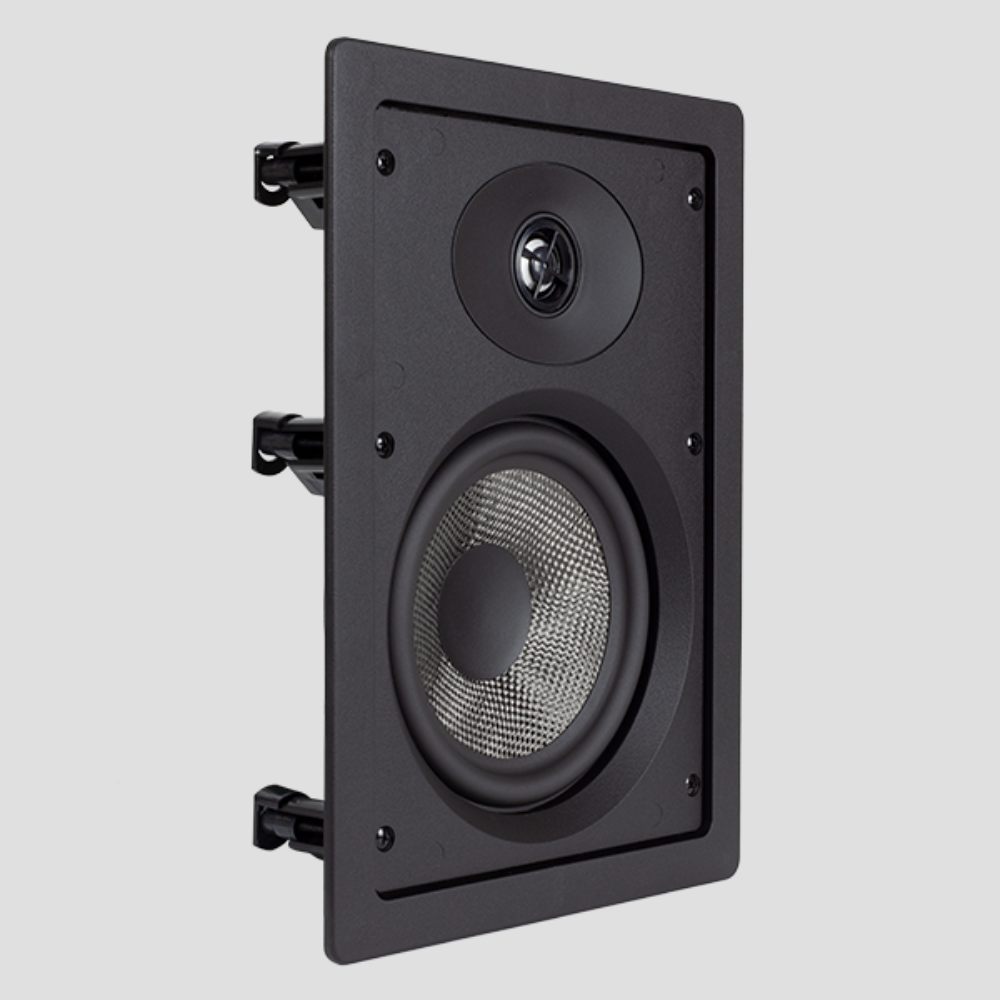

• Mounting System: Dog-leg clamps for secure fit in single or double drywall

• Hardware: Weather-resistant stainless components — suitable for damp spaces

• Optional Accessories:

  • Pre-construction bracket kit (PCK W6)

  • Square grille kit (SGK6)
