KIN IW8 Slim

A Wall of Sound

The shallowest of all Totem Architectural speakers fit effortlessly into the tight confines of standard construction framework, transforming them into walls of sensational Totem sound.

Powerful bass generated by the 8” carbon fiber woofer meshes flawlessly with the clear, precise highs emanating from a 1” ceramic tweeter. Totem’s incomparable dispersion will wholly occupy the entire space to ensure every spot of the living area sounds like a prime location. They also seamlessly intermesh with all other Totem speakers for omnipresent multichannel systems so fearlessly mix and match as required.

Discover your Kin Architectural and expand your musical experiences.

Optional Accessories

PCK W8:  Pre-construction kits facilitate installation before drywall has been installed.

Product Details

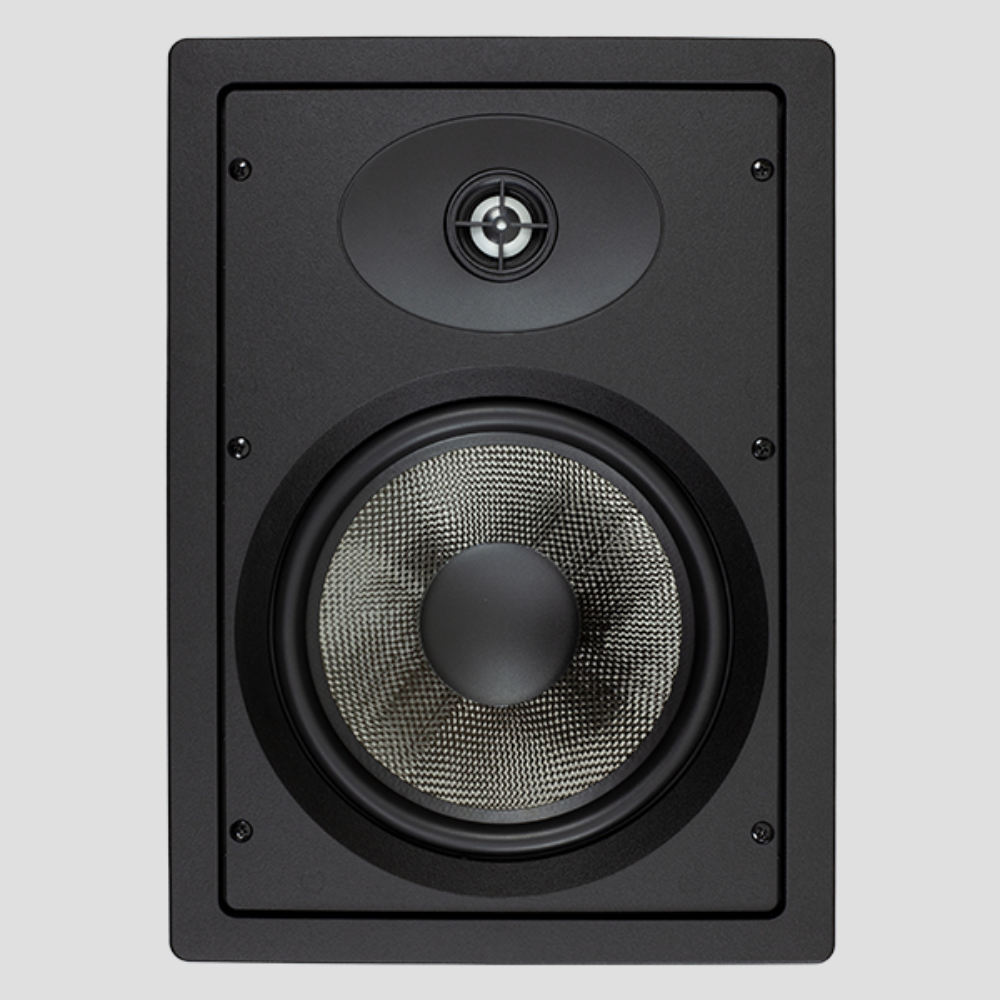

• Design: Slim-profile 8″ in-wall architectural speaker

• Frequency Response: 48 Hz – 25 kHz

• Recommended Amplifier Power: 10 W – 125 W

• Woofer: 8″ carbon-fiber cone

• Tweeter: 1″ ceramic dome with pivoting faceplate

• Impedance: 8 Ω

• Sensitivity: 91 dB (1 W/1 m)

• Dispersion: 75° coverage for wide sound distribution

• Dimensions (W × H × D): 264 × 364 × 102 mm (10.39″ × 14.33″ × 4.01″)

• Cut-Out Size: 225 × 328 mm (8.85″ × 12.75″)

• Weight: 2.08 kg (4.6 lb) each

• Mounting Depth: 102 mm (4.01″), designed for space-limited installations

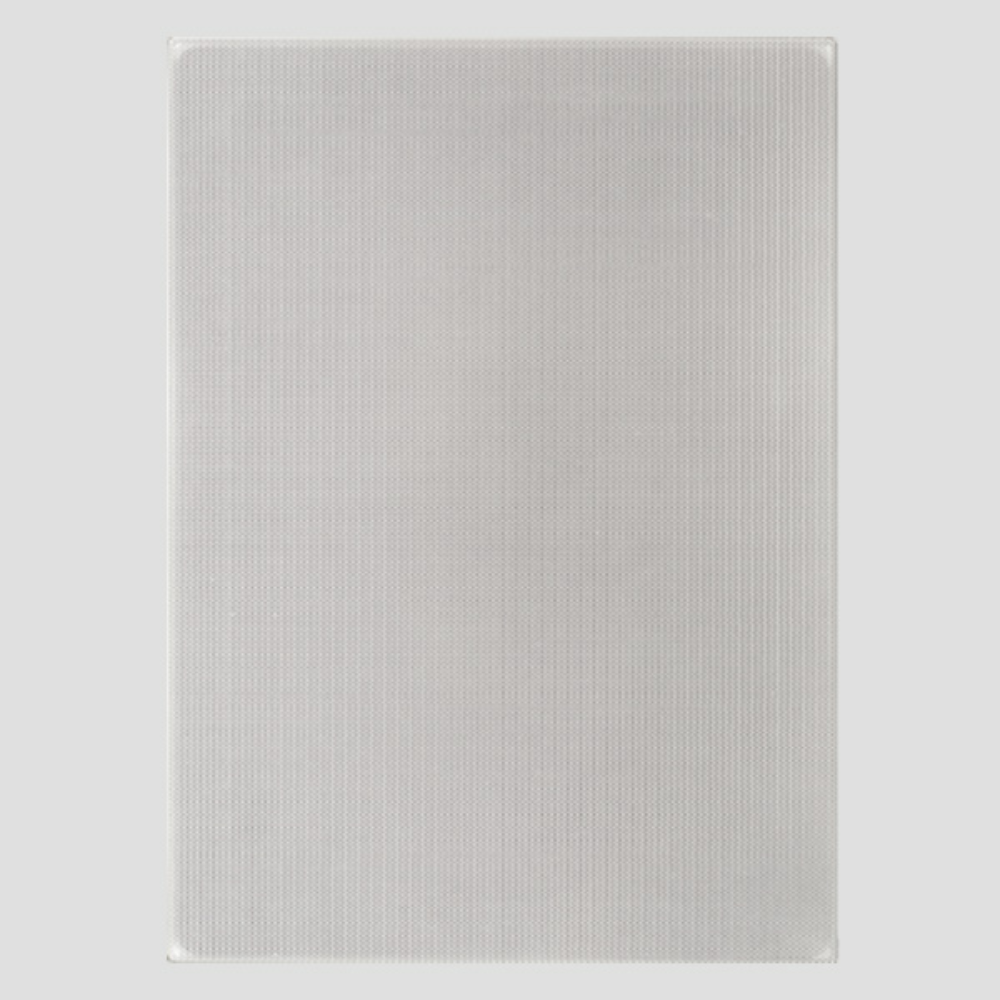

• Grille: Magnetic, paintable, stainless-steel, and virtually bezel-less

• Terminals: Spring-loaded, gold-plated, supports up to 12 AWG wire

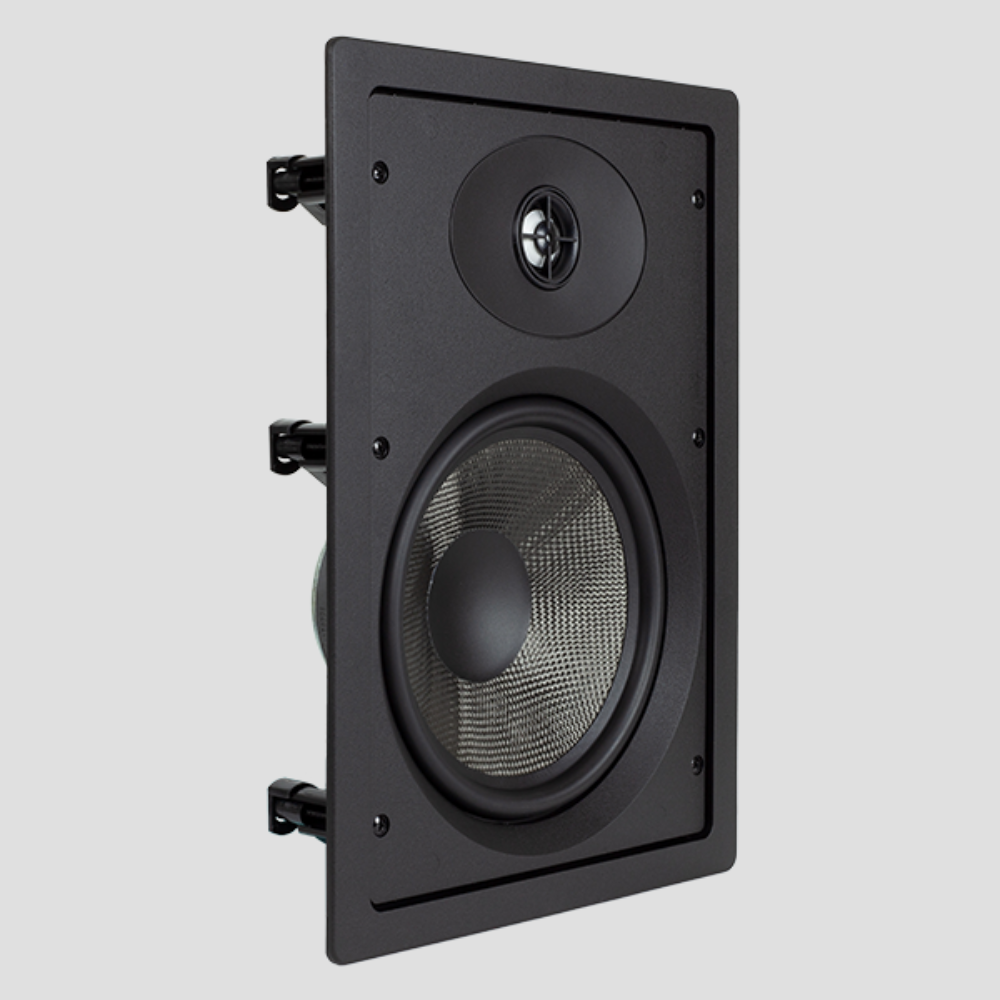

• Mounting System: Dog-leg clamps for secure installation in single or double drywall

• Hardware: Weather-resistant, suitable for damp environments like bathrooms or covered outdoor areas

• Optional Accessories:

  • Pre-construction bracket kit (PCK8C)

  • Square grille kit (SGK8)
