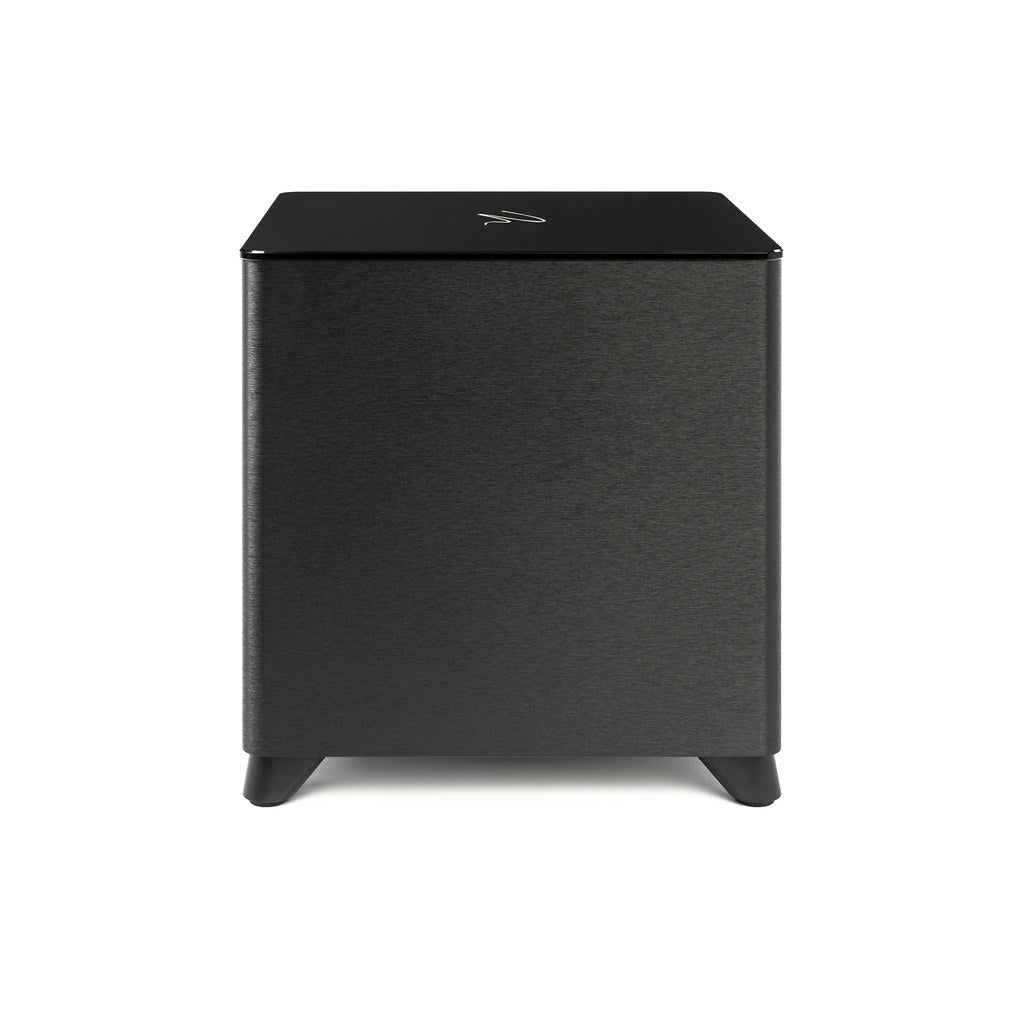

Martin Logan Dynamo Foundation 10 Black
Choose options
FEATURES:
Dynamo™ Foundation® 10 is the gateway into the world of MartinLogan’s High Performance subwoofers, delivering an immersive experience for all your content, at an exceptional value. As the most compact Dynamo Foundation model, the Dynamo Foundation 10 merges high performance and value into a décor friendly design that can be used with any speaker system. As with all MartinLogan subwoofers, it is also uniquely designed to keep pace with the renowned clarity of MartinLogan loudspeakers. The combination of sleek looks, a solid cabinet, and a powerful 10” woofer backed up by a robust amplifier all controlled by a powerful DSP Engine is an incredible recipe for thrilling low frequency performance.
Seamlessly Integrating
High-Performance Audio with Elegant Design
MartinLogan subwoofers are uniquely engineered to complement the exotic thin-film technologies utilized in MartinLogan loudspeakers. Emphasizing high performance and decor-friendly aesthetics, MartinLogan subwoofers expertly blend audiophile musicality and theatricality with dynamic output and accuracy in a compact design.
High-Performance, Low-Distortion Bass at an Exceptional Value
Dynamo Foundation 10 features a custom-designed and tuned 10” Ultra-Rigid Polypropylene (URP) woofer. Utilizing the same state-of-the-art Klippel analysis as MartinLogan’s more premium woofers, this proprietary driver is specially engineered to provide high output and low distortion at an exceptional value, while embodying every bit of MartinLogan quality.
|
Digital Signal Processing |
High-resolution 200MHz DSP engine with 56-bit processing |
|
Frequency Response |
25–200 Hz ±3 dB (Anechoic via LFE input) |
|
Low Frequency Transducer |
10” (25.4cm) high-excursion, Ultra-Rigid Polypropylene (URP) cone in a stamped steel basket |
|
Cabinet |
Sealed MDF cabinet with reinforced MDF woofer baffle |
|
Amplifier |
Magnitude® MT-400 Amplifier with 400W peak (200W continuous) |
|
Controls (Backplate) |
Level: Min–Max |
|
Wireless Inputs |
WSK-1 Kit Sold Separately |
|
Inputs |
Line Level: Left, Right/LFE |
|
Power Draw |
Max: 250W |
|
Feet |
Non-Slip |
|
Weight |
23.8 lbs. (10.8 kg) |
|
Dimensions (H x W x D) |
13" x 12-3/4" x 12-3/4" (33cm x 31.3cm x 31.3cm) |
|
|
High-Impact
Magnitude MT-400 Amplifier
MartinLogan’s proprietary Magnitude Amplifier unleashes the full potential of the custom-engineered 10” URP woofer. The Magnitude MT-400 delivers up to 400W Peak (200W RMS) of clean power for incredible impact and effortless musicality. This ultra-efficient Class-D amplifier delivers commanding bass with the utmost precision and control, providing an immersive experience regardless of the content.
Seamless Integration with Grille-Less
Down-Firing Design
Dynamo Foundation subwoofers use a down-firing design, resulting in a clean, grille-less aesthetic to seamlessly blend into a variety of decors.
