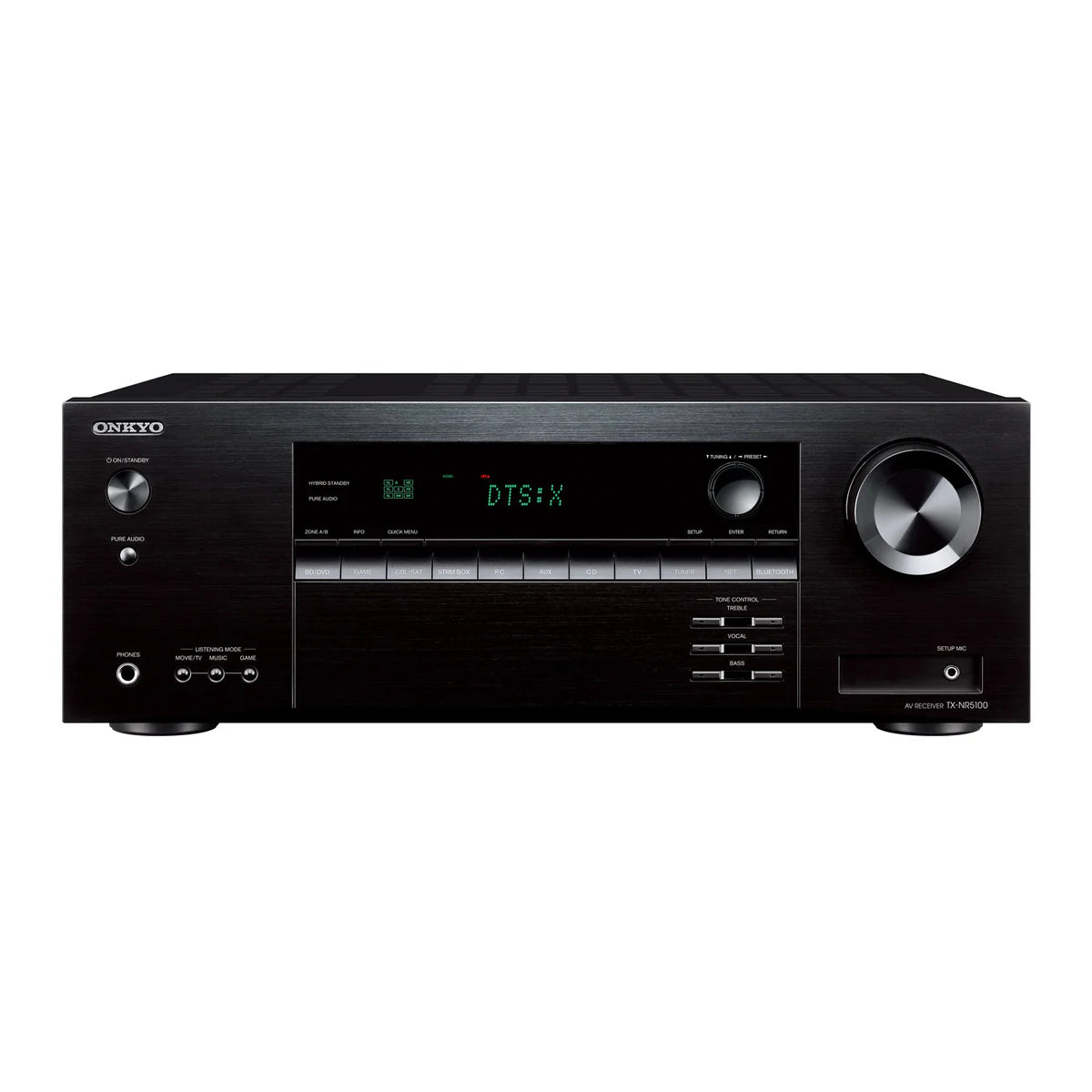

Onkyo TX-NR5100 7.2-Channel 8K AV Receiver
Choose options
Description
Unlock 8K/60p video passthrough via HDMI® 2.1-specified HDMI terminals and enjoy HDR10+ or Dolby Vision™ HDR formats with eARC supporting amplification of encoded multichannel audio from your compatible TV’s video-streaming apps, tuner, or connected media players. Enhancements to HDMI eliminate latency for smooth, lag-free gameplay. With discrete high-thrust amps developing 165 W/Ch, Dolby Atmos® and DTS:X® soundtracks are played with thrilling dynamism while Dolby Atmos Height Virtualizer and DTS Virtual:X™ can work 3D magic on almost any audio played through any speaker layout. SMART AV Receiver™ offers a wide selection of streaming services and forms the heart of your wireless multi-room audio ecosystem. The receiver also fits into an existing Sonos Home Sound System. Cue and control music around your home with voice assistants Hey Google or Alexa or hear what’s playing through the AVR on wireless headphones over bi-directional Bluetooth® wireless technology
Amplifier Section
Power output (All channels)
165 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven)
80 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
Dynamic power& &
240 W (3 ohms, Front) 210 W (4 ohms, Front)
120 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, half power
Input sensitivity and impedance
200 mV rms/47 k-ohms (Line)
Rated RCA output level and impedance
1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/2.2 k-ohms (Zone B line-out)
Frequency response& & & &
10 Hz–100 kHz/+1 dB,
-3 dB (Direct/Pure Audio)
Tone control& & &
& ±10 dB, 20 Hz (Bass)
& ±10 dB, 20 kHz (Treble)
& Signal-to-noise ratio&
-106 dB (Line, IHF-A)& Speaker impedance
4 –16 ohms
