Revel C763L Specialty In-Ceiling Loudspeaker (Each) (Demo)

Revel

Revel C763L Specialty In-Ceiling Loudspeaker (Each) (Demo)

$1,299.99 $1,799.99
Save $500.00

FEATURES:

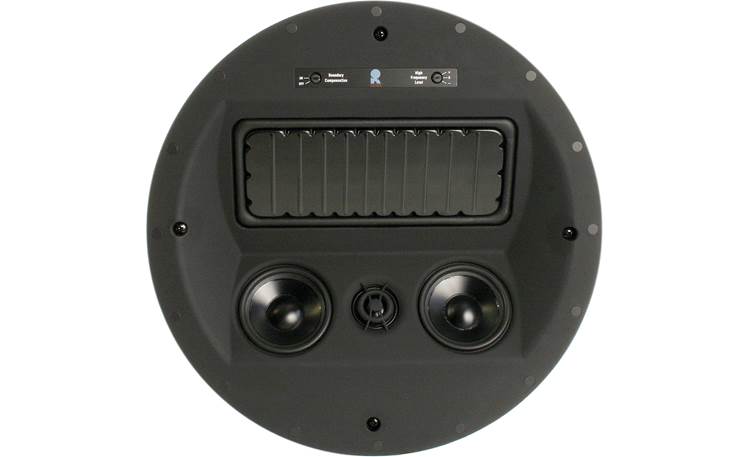

The Revel C763L is a premium, 3-way specialty architectural in-ceiling loudspeaker designed specifically for high-performance home theater applications. Unlike standard in-ceiling speakers that fire straight down, the C763L features an angled-baffle design that directs sound down and forward toward your seating area. This makes it an excellent choice for flush-mounted front Left, Center, and Right (LCR) channels

Speaker Type: 3-way passive in-ceiling with an integrated, built-in back-box (enclosure). [1, 2]
Drivers:
  • Woofer: 7.8" x 3.4" Micro-Ceramic Composite (MCC) flat-panel cone.
  • Midrange: Dual 3.5" MCC cone drivers with cast-aluminum frames.
  • Tweeter: 1" angle-adjustable aluminum-dome tweeter with an integrated waveguide.
Power Handling: Recommended amplifier power of 10 to 200 Watts RMS.
Impedance & Sensitivity: 6–8 Ohms nominal impedance with an 85–86 dB sensitivity rating.
Acoustic Controls: Built-in boundary compensation switch (to counteract bass boominess near walls) and a 3-position high-frequency level control.
Physical Dimensions: Requires an 11.25" (28.7 cm) cutout diameter and a 5.7" (14.5 cm) mounting depth. It ships with both zero-bezel round and square magnetic grilles.
