VTL

Siegfried Series II Reference Monoblock (Pair)

$97,800.00
  • Siegfried Series II Reference Monoblock (Pair)
Siegfried Series II Reference Monoblock (Pair) Siegfried Series II Reference Monoblock (Pair) Siegfried Series II Reference Monoblock (Pair) Siegfried Series II Reference Monoblock (Pair)

VTL

Siegfried Series II Reference Monoblock (Pair)

$97,800.00

Description

Since its introduction in 2003, VTL’s Siegfried Reference monoblock amplifier has been recognized as the leader in the world of high power, high performance amplifiers, both for ease of use and musicality. Known as the first tube amplifier to deploy true Auto Bias and Fault Sensing, as well as precision-regulated power supply technology, the Siegfried amplifiers have won the loyalty and appreciation of serious music lovers around the world.



The new Series II version of the renowned Siegfried platform features a complete re-working of the entire signal path. Upgrades include a fully balanced differential input stage driving a differential phase splitter and a lower impedance push-pull output stage with a dramatically improved, fully balanced and enhanced interleaved and coupled output transformer. VTL’s engineering brings the renowned sonic performance of the innovative Siegfried Reference platform to even greater heights.

The new Siegfried Reference monoblocks gain further sonic benefits with a shorter, faster and fully balanced negative feedback loop, with zero global negative feedback. The negative feedback loop completely eliminates ringing and requires no capacitor compensation to maintain critical phase integrity and information. The result is an amplifier that remains stable even under the most demanding loads.

Specifications and Features:

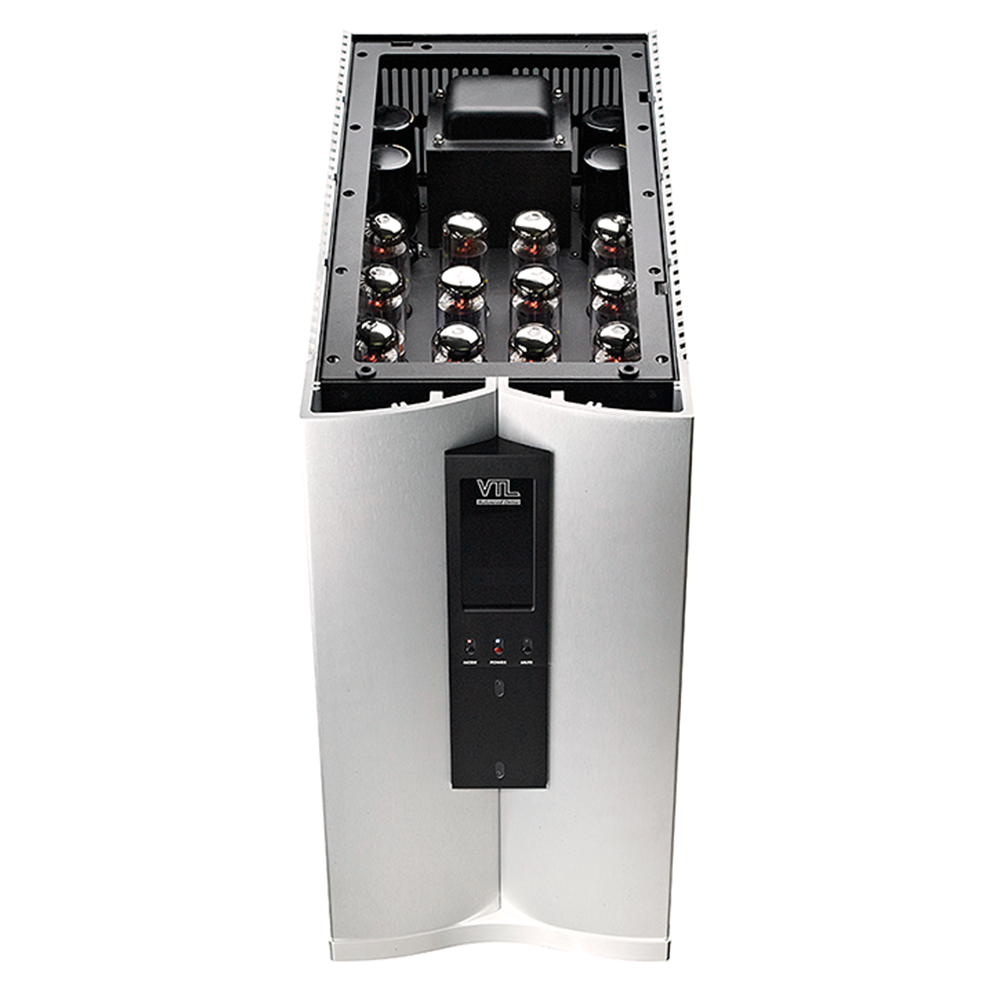

  • Vacuum Tube Complement: 12 x 6550 or KT-88, 1 x 12AT7, 2 x 12BH7
  • Output Power:
    • Tetrode = 650 watts
    • Triode = 330 Watts
  • 20Hz ‐ 20kHz <3.5% THD:  Into 5 ohms
  • Input Sensitivity: Variable between 1-2V, depending upon DF setting
  • Input Impedance: 45K Ohms
  • Load setting: 5 ohms
  • Optimum Load Range: 4 - 8 ohms
  • S/N Ratio: -110dB, 120 Hz
  • Power Consumption:
    • Idle = 600 W
    • Full Power = 1500 W
  • Primary Mains Fuse Rating: 100/120V = 20A Ceramic Slo Blo, 220/240V = 10A Ceramic Slo Blo
  • Logic fuse: 100/120V = 1A Ceramic Slo Blo, 220/240V = 1A Ceramic Slo Blo
  • Input fuse: 100/120V = 2A Ceramic Slo Blo, 220/240V = 1A Ceramic Slo Blo
  • Filament fuse: 100/120V = 2A Ceramic Slo Blo, 220/240V = 1A Ceramic Slo Blo
  • Secondary fuse rating: Plate Fuse = 5A fast acting 600V, Screen Fuse = 0.75A fast acting 600V
  • Dimensions W x D x H: 11.5 x 24 x 24 inches (29.2 x 61 x 61 cm)
  • Weight: 200lbs (90Kg) per monoblock unpacked, 325lbs (147Kg) packed
