Description
Specifications and Features:
-
Frequency response: 20 Hz to 20 kHz +0, –0.15 dB
<0.5 Hz to 100 kHz +0, –3 dB -
Signal-to-noise ratio: >103 dB, wideband, unweighted, referred to full power output
>114 dB, “A”-weighted - Gain: 27 dB
-
Total harmonic distortion: <0.03% at 1 kHz, at 375 W, 8 Ω
<0.19% at 20 kHz, at 375 W, 8 Ω -
Input impedance: Single-ended: 100 kΩ
Balanced: 200 kΩ - Input sensitivity: Single-ended or balanced: 2.45 V RMS
-
Output power: 375 W RMS at 8 Ω
600 W RMS at 4 Ω -
Output voltage: 154 V peak-to-peak
55 V RMS - Output current: 17 A peak
- Slew rate: 40 V/μs
- Output impedance: <0.018Ω, 20 Hz to 20 kHz
- Damping factor: >440, 20 Hz to 20 kHz, referred to 8W
-
Power consumption: Standby: 1 W
Idle: 66 W
Maximum: 1150 W -
Heat output: Standby: 3.42 BTU/hr.
Idle: 225BTU/hr.
Maximum: 3933 BTU/hr. -

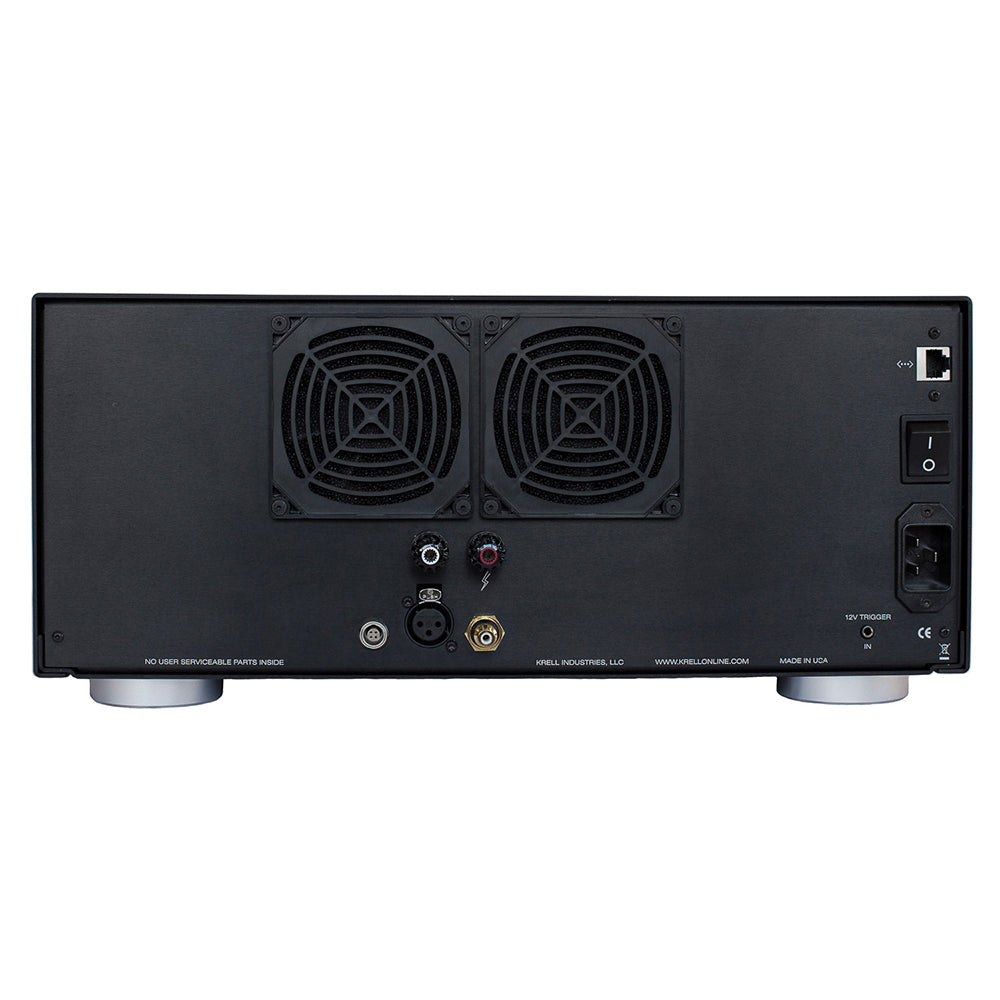

Inputs: 1 single-ended via RCA connector
1 balanced via XLR connector
1 CAST - Outputs: 1 pair binding posts
-
Dimensions: 17.1 in. W x 7.65 in. H x 21.10 in. D
434 mm W x 194 mm H x 536 mm D
