Sony

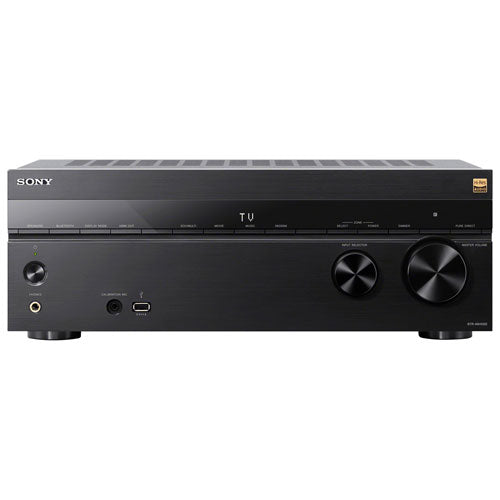

Sony STR-AN1000 7.2 Channels Receiver Black
Choose options
Bring the sound of the movie theatre to your home
STR-AN1000
Featuring 360 Spatial Sound Mapping technology, the AN1000 gives you an immersive surround experience that is enabled by multiple phantom speakers. With D.C.A.C. IX Auto Calibration, it’s always optimized for the best sound setting for your room, resulting in a breathtaking cinematic sound experience at home. And thanks to DTS:X and Dolby Atmos support, the AN1000 delivers mighty, cinematic surround, right alongside stunning high-resolution music, streaming and smart integration.
360 Spatial Sound that adapts to your environment
D.C.A.C. IX ingeniously measures the height and position of each speaker with a calibration microphone.
The AN1000 features 360 Spatial Sound Mapping technology to draw you into your entertainment like never before. Based on the positional information measured by D.C.A.C. IX, and multiple phantom speakers are generated all around you, for an entirely new sound sensation, so you can experience all the drama of Dolby Atmos® and DTS:X® alongside every breath, step and word like you’re right inside the film.
High-quality visuals
Best with Sony TVs
|
Summary
|
|||||
|---|---|---|---|---|---|
|
PRICE
|
$1,199.99
|
||||
|
WHAT’S IN THE BOX
|
Calibration mic stand
Calibration microphone(Stereo) FM wire antenna R03 (size AAA) batteries Remote control |
||||
|
Size & Weight
|
|||||
|
Dimensions (W x H x D mm)
|
430 x 156 x 331 mm
|
||||
|
Weight (kg)
|
9.4 kg
|
||||
|
Dimension (WxHxD inches)
|
17 x 6.25 x 13.13 in
|
||||
|
Weight (pound)
|
20 lb 12 oz
|
||||
|
General Features
|
|||||
|
Auto Standby
|
Yes
|
||||
|
GUI (Graphical User Interface)
|
Yes
|
||||
|
Power Requirement
|
120V 60Hz
|
||||
|
Power consumption
|
240W
|
||||
|
Amplifier
|
|||||
|
Number of Amp. Channels
|
7ch
|
||||
|
Number of Decodable Channels
|
7.1ch
|
||||
|
Power Output
|
120 W + 120 W (6 ohms, 1 kHz, THD 0.9%)
|
||||
|
Speaker Impedance
|
6–16 ohms
|
||||
|
Audio Features
|
|||||
|
Hi-Res Format
|
DSDIFF (DSD): Up to 11.2 MHz, DSF: Up to 11.2 MHz, WAV (LPCM), AIFF (LPCM), FLAC, ALAC
|
||||
|
Calibration Features
|
D.C.A.C. IX, Automatic Phase Matching
|
||||
|
Video Features
|
|||||
|
4K 120 support
|
Yes (GAME, MEDIA BOX)
|
||||
|
8K 60 Support
|
Yes (GAME, MEDIA BOX)
|
||||
|
HDMI® Pass Through
|
Yes (HDR10, Hybrid Log Gamma, Dolby Vision)
|
||||
|
Video Up Scaler
|
Yes (up to 4K/8K)
|
||||
|
A/V SYNC
|
Yes (Variable)
|
||||
|
Audio Return Channel
|
Yes (eARC/ARC)
|
||||
|
BRAVIA® SYNC™ (CEC Control)
|
Yes
|
||||
|
HDMI® Pass Through
|
Yes
|
||||
|
Features specified in HDMI™
|
VRR, ALLM
|
||||
|
IMAX Enhanced
|
Yes
|
||||
|
Features for PlayStation®5
|
|||||
|
AUTO HDR TONE MAPPING COMPATIBLE (PASS-THROUGH)
|
Yes
|
||||
|
AUTO GENRE PICTURE MODE COMPATIBLE (PASS-THROUGH)
|
Yes
|
||||
|
Network Features
|
|||||
|
SPOTIFY CONNECT
|
Yes
|
||||
|
Airplay2
|
Yes
|
||||
|
Chromecast built-in
|
Yes
|
||||
|
Voice Control
|
Yes (Works with Google Home)
|
||||
|
Works with SONOS
|
Yes
|
||||
|
Roon tested
|
Yes
|
||||
|
DLNA
|
DMP, DMR
|
||||
|
Tuner Features
|
|||||
|
FM/AM
|
Yes/No
|
||||
|
PRESET CHANNEL (FM/AM)
|
TTL30 (30 / 0)
|
||||
|
Custom Install & Control Features
|
|||||
|
Zone2 Audio
|
HDMI (Fixed)
|
||||
|
Zone2 Video
|
HDMI
|
||||
|
Zone 3 Audio
|
Speaker (Variable) / Line (Variable, Fixed)
|
||||
|
IR Repeat (In/Out)
|
Yes (1 / 1)
|
||||
|
12V Trigger
|
No
|
||||
|
Interface
|
|||||
|
Audio Input
|
Opt: 1, Coax: 1, Analogue Audio In: 4
|
||||
|
Audio Output
|
Headphone Out, Pre Out (Subwoofer): 2, S-Centre out for Acoustic Centre Sync
|
||||
|
Speaker Output Terminals
|
Front A, Centre, Surround, Surround Back / Height (Front B / Bi-AMP / Zone 3)
|
||||
|
Video Input
|
HDMI: 6, Composite: 2
|
||||
|
Video Output
|
HDMI: 2, Composite Monitor Out: 1
|
||||
|
HDMI™ HDCP version
|
HDCP2.3
|
||||
|
Other Input/Output
|
Wireless speakers option, Bluetooth Receiver, Bluetooth Transmitter, Wi-Fi, Ethernet Port: 1, USB: 1
|
||||
