Description
Specifications and Features:
-
Frequency response: 20 Hz to 20 kHz +0, –0.11 dB
<3 Hz to 200 kHz +0, –3 dB -
Signal-to-noise ratio: >101 dB, wideband, unweighted, referred to full power output
>114 dB, “A”-weighted - Gain: 25.5 dB
-
Total harmonic distortion: <0.02% at 1 kHz, at 100 W, 8 Ω, two channels driven;
<0.20% at 20 kHz, at 100 W, 8 Ω, two channels driven; -
Input impedance: Single-ended: 27 kΩ;
Balanced: 54 kΩ; - Input sensitivity: Single-ended or balanced: 1.50 V RMS
-
Output power: 120W RMS at 8 Ω, 2 channels driven
115W RMS at 8 Ω, 3 channels driven
110W RMS at 8 Ω, 5 channels driven
105W RMS at 8 Ω, 7 channels driven
210W RMS at 4 Ω, 2 channels driven
190W RMS at 4 Ω, 3 channels driven
165W RMS at 4 Ω, 5 channels driven
140W RMS at 4 Ω, 7 channels driven -
Output voltage: 93 V peak-to-peak
33 V RMS - Output current: 10 A peak
- Slew rate: 40 V/μs
- Output impedance: <0.025 Ω, 20 Hz to 20 kHz
- Damping factor: >320, 20 Hz to 20 kHz, referred to 8 Ω
-
Power consumption: Standby: 1 W
Idle: 66 W
Maximum: 2000 W -
Heat output: Standby: 3.42 BTU/hr.
Idle: 225 BTU/hr.
Maximum: 2200 BTU/hr. -

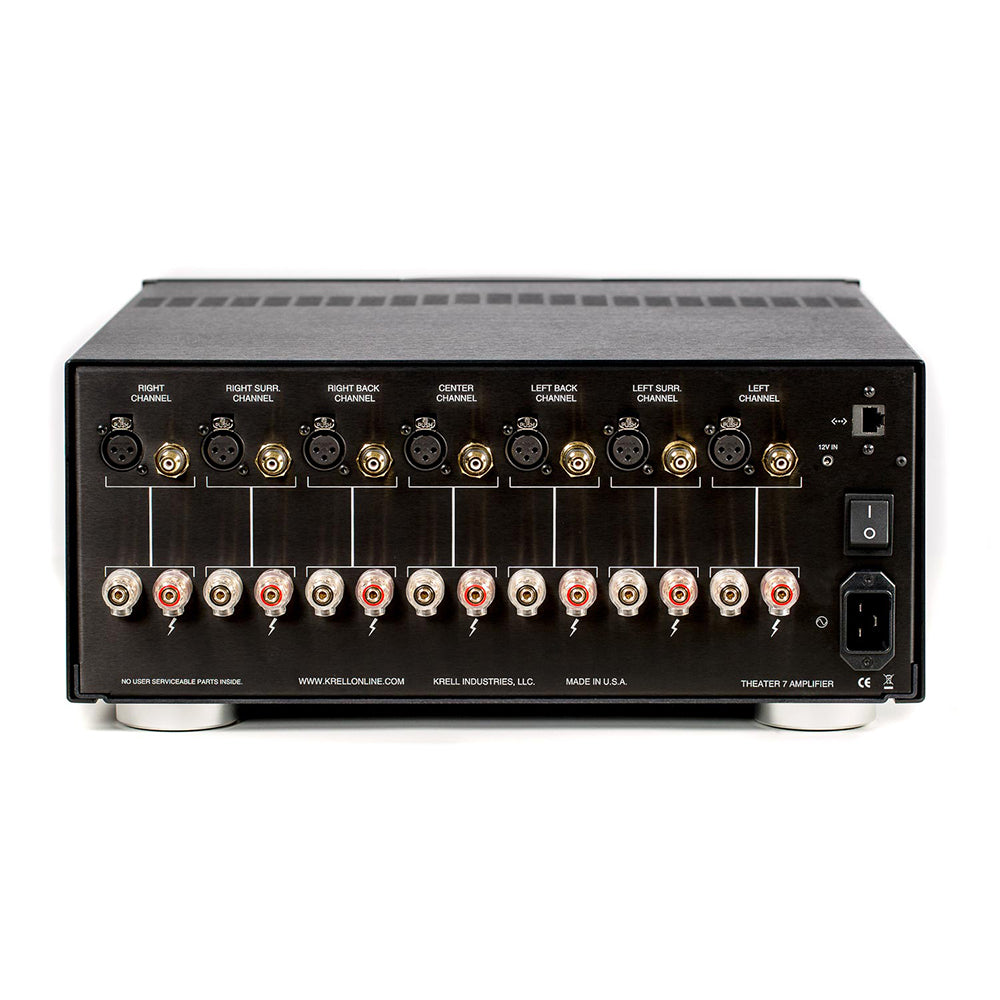

Inputs: 7 single-ended via RCA connector
7 balanced via XLR connector - Outputs: 7 pairs binding posts
- Remote connectors: One 12 VDC input (12 V trigger) via 3.5 mm jack
-
Dimensions: 17.1 in. W x 7.65 in. H x 21.10 in. D
434 mm W x 194 mm H x 536 mm D
