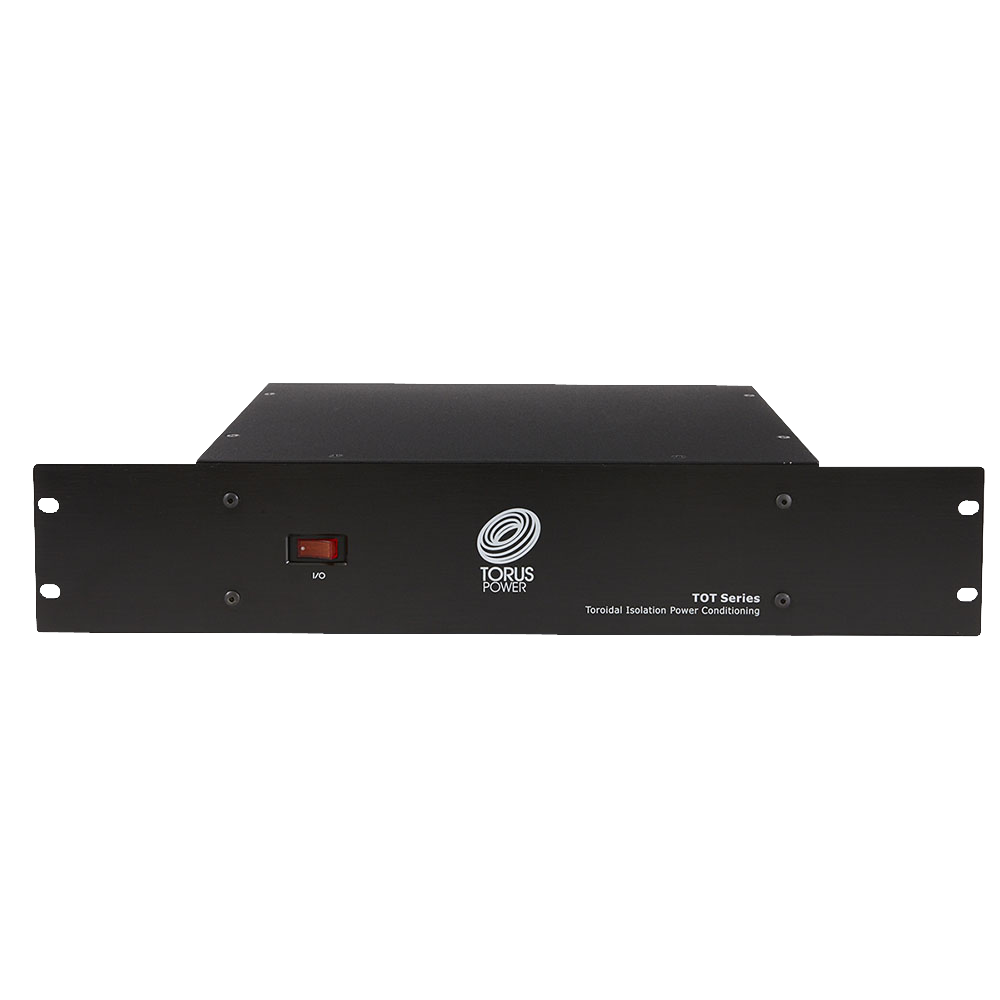

Torus Power’s “TOT” Series consists of three compact models that bring toroidal power conditioning to a new price point. Compact in size, affordable for most applications and packed with features, the TOT Series is an easy choice to improve performance of all audio and video systems.
The TOT Mini, rated at 7 Amps, is ideal to provide clean power to Audio/Video systems, projectors, flat panels, powered speakers, media/ source players, processors, or network devices.
All TOT models feature a courtesy USB charger outlet. Options include a dress aluminum faceplate (Black or Silver) and a 19” rack mount adapter kit. TOT units include circuit protection through a replaceable varistor. Torus Power non-sacrificial Series Mode Surge Suppression (SMSS) is also available as a factory-installed option.
- CONFIGURATION: SHELF MODEL
- CHASSIS: 2U
- INPUT VOLTAGE: 120V
- OUTPUT VOLTAGE: 120V
- INPUT CIRCUIT BREAKER: 1 X 8A FUSE
- OUTPUT CURRENT: 7A
- POWER RATING: 805VA
- FREQUENCY: 60Hz
- NO. OUTLETS: 6
- INLET TYPE: IEC 15A
- OUTLET TYPE: 3 DUPLEX 5-15R
- SIZE IN W X D X H: 12.5 X 4.0 X 10.5
