TOTEM
Totem Totem - TAW 6.5 II - In-Wall Speaker (One Only) (Demo)
Choose options
FEATURES:

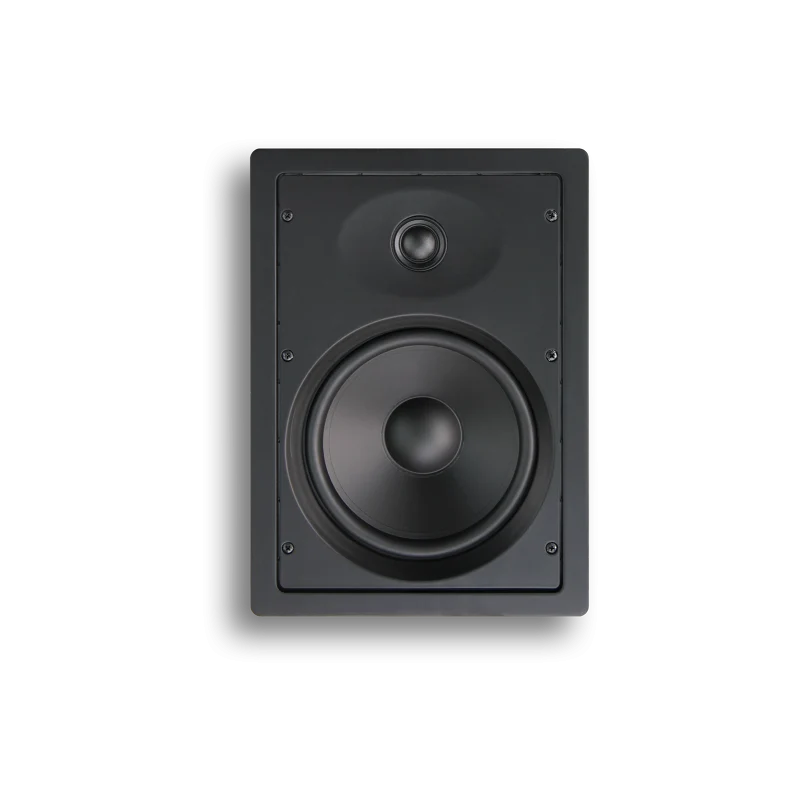

The Totem Acoustic TAW 6.5iw (also known as the Mask TAW 6.5) is a legacy, high-performance 6.5-inch architectural in-wall loudspeaker engineered by the Canadian premium audio brand Totem Acoustic. Designed as an "Infinite Baffle" loudspeaker, it delivers Totem’s signature expansive, holographic soundstage from a format that mounts flush into standard wall cavities.
Key Specifications
| Component / Metric | Specification |
|---|---|
| Design | Two-way In-Wall Infinite Baffle |
| Woofer | 6.5” (165 mm) Black Polypropylene Cone with Rubber Surround |
| Tweeter | 0.75” to 0.8” Pivoting Cloth/Soft Dome (Neodymium Magnet, Ferrofluid-cooled) |
| Frequency Response | 50 Hz - 20 kHz ± 3 dB |
| Impedance | 6 ohms nominal (4 ohms minimum) |
| Efficiency / Sensitivity | 90 dB |
| Power Handling | 10 – 100 W (Recommended amplifier power) |
| Grille | Low-profile, paintable white metal grille |
Physical Dimensions
Overall Exterior (W x H x D): 8.9" x 12.0" x 3.0" (220 x 305 x 75 mm)
Wall Cutout (W x H): 7.3" x 10.7" x 3.0" (185 x 272 mm) [1]
Notable Design Strengths
Pivoting Tweeter: Allows you to manually angle and direct high frequencies toward your primary listening area to maximize stereo imaging and dialogue clarity. [1, 2]
Signature Wide Dispersion: Built to diffuse sound broadly rather than beaming a narrow "spotlight," meaning the sweet spot fills the room evenly whether you are sitting or standing. [1, 2]
Seamless Aesthetics: Features a heavily integrated, ultra-flat structural tension framing kit with a grill that can be painted to match your drywall or home decor. [1, 2]
If you are trying to source or configure these, are you looking to buy a replacement set, or do you need help wiring, choosing a matching amplifier, or finding the current generation equivalents (like the KIN IW series)?
