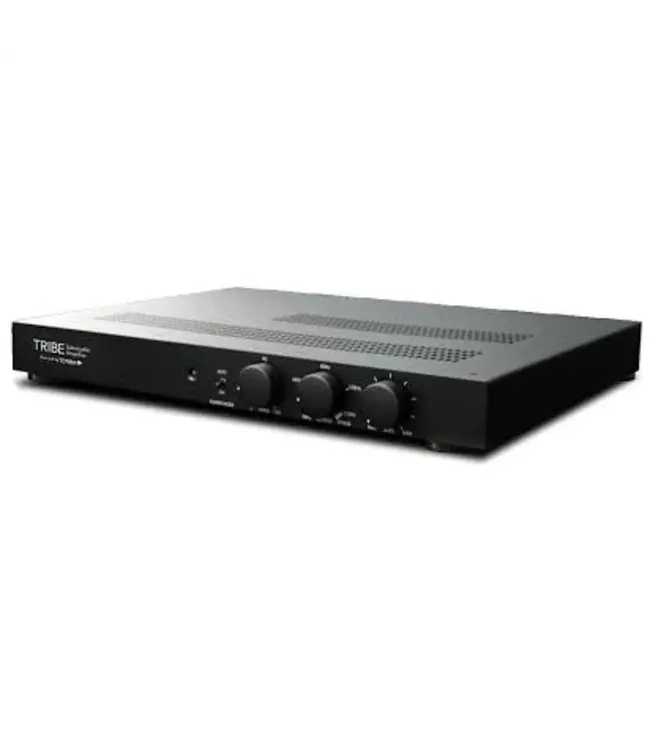

Totem Tribe Subwoofer Amplifier (Demo)

SPECIFICATIONS:

The Totem Tribe Sub series utilizes an external, high-performance 500-watt Totem/Bash amplifier specifically designed to power their passive subwoofer modules. This includes modules like the Tribe Sub, Tribe In-Wall Double 8, and Tribe In-Wall 12.

The key specifications for the external Totem 500W Sub Amplifier include:

Power Output: 500 watts (Class D digital design)

Design/Capabilities: Each amplifier can operate up to 2 sub modules (must be wired in parallel)

Model Select Switch: Selectable toggles for specific sub models (e.g., SUB8, SUB12, etc.) to optimize the tuning

Level Control: Adjusts input signal level and volume.

Low Pass Filter: Variable from 40 Hz to 120 Hz (with a Bypass mode when turned completely to the right).

Phase Control: Continuously variable from 0° to 180°.

Power Mode: Auto/On switch. The logo power indicator glows Red in standby and Blue when active, fading after 30 seconds.
