Description
Specifications and Features:
-
Frequency response: 20 Hz to 20 kHz +0, –0.08 dB
<0.5 Hz to 100 kHz +0, –3 dB -
Signal-to-noise ratio: >98 dB, wideband, unweighted, referred to full power output
>116 dB, “A”-weighted - Gain: 26.2 dB
-
Total harmonic distortion: <0.045% at 1 kHz, at 300 W, 8 Ω
<0.17% at 20 kHz, at 300 W, 8 Ω -
Input impedance: Single-ended: 100 kΩ
Balanced: 200 kΩ - Input sensitivity: Single-ended or balanced: 2.4 V RMS
-
Output power: 300 W RMS at 8 Ω
540 W RMS at 4 Ω -
Output voltage: 138 V peak-to-peak
49 V RMS - Output current: 16 A peak
- Slew rate: 40 V/μs
- Output impedance: <0.007Ω, 20 Hz to 20 kHz
- Damping factor: >1140, 20 Hz to 20 kHz, referred to 8W
-
Power consumption: Standby: 4 W
Idle: 200 W
Maximum: 2160 W -
Heat output: Standby: 13.7 BTU/hr.
Idle: 800BTU/hr.
Maximum: 7387 BTU/hr. -

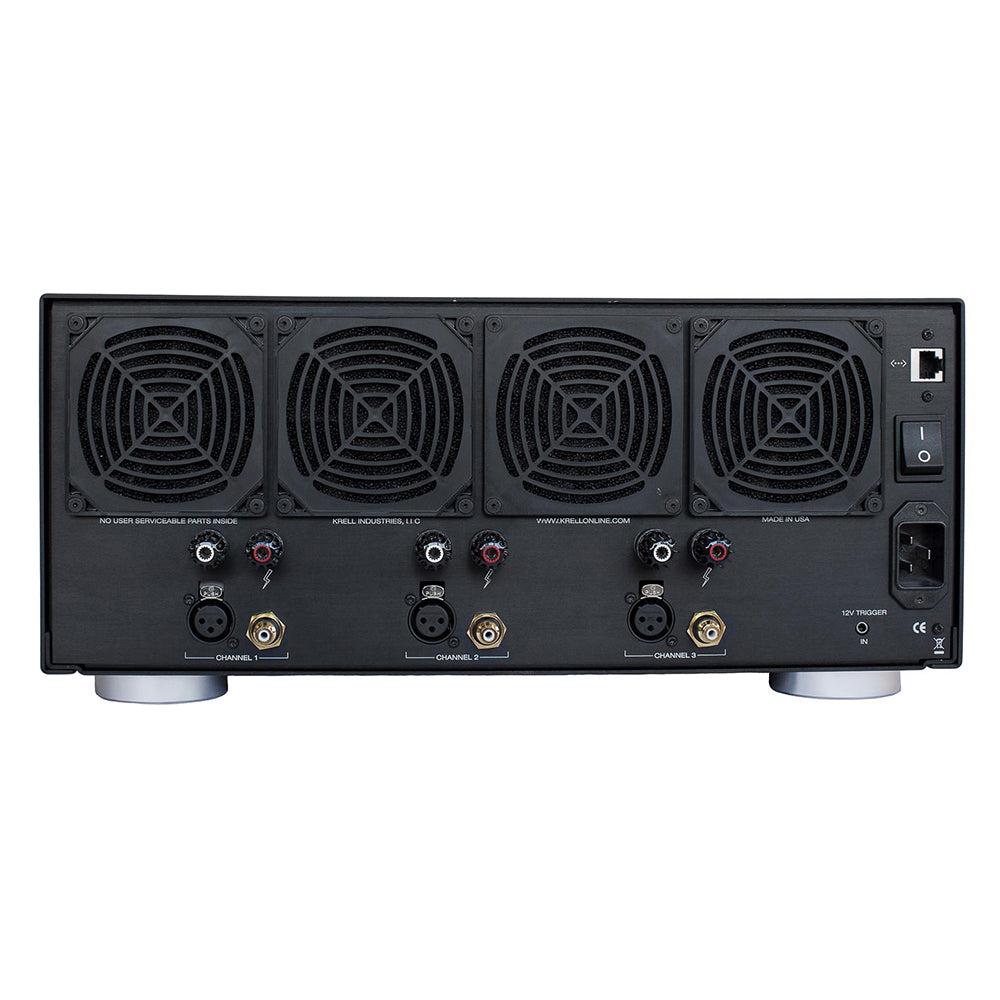

Inputs: 3 single-ended via RCA connector
3 balanced via XLR connector - Outputs: 3 pairs binding posts
-
Dimensions: 17.1 in. W x 7.65 in. H x 21.10 in. D
434 mm W x 194 mm H x 536 mm D
